UVC-G6-Pro-360 Dahua Box Mount Adapters - PFA136 - PFA137

Made-to-order adapter plates that mount a Ubiquiti UVC-G6-Pro-360 on a Dahua junction box. Swapping Dahua for UniFi? Keep the box that is already on the wall. Pick your Dahua box below.

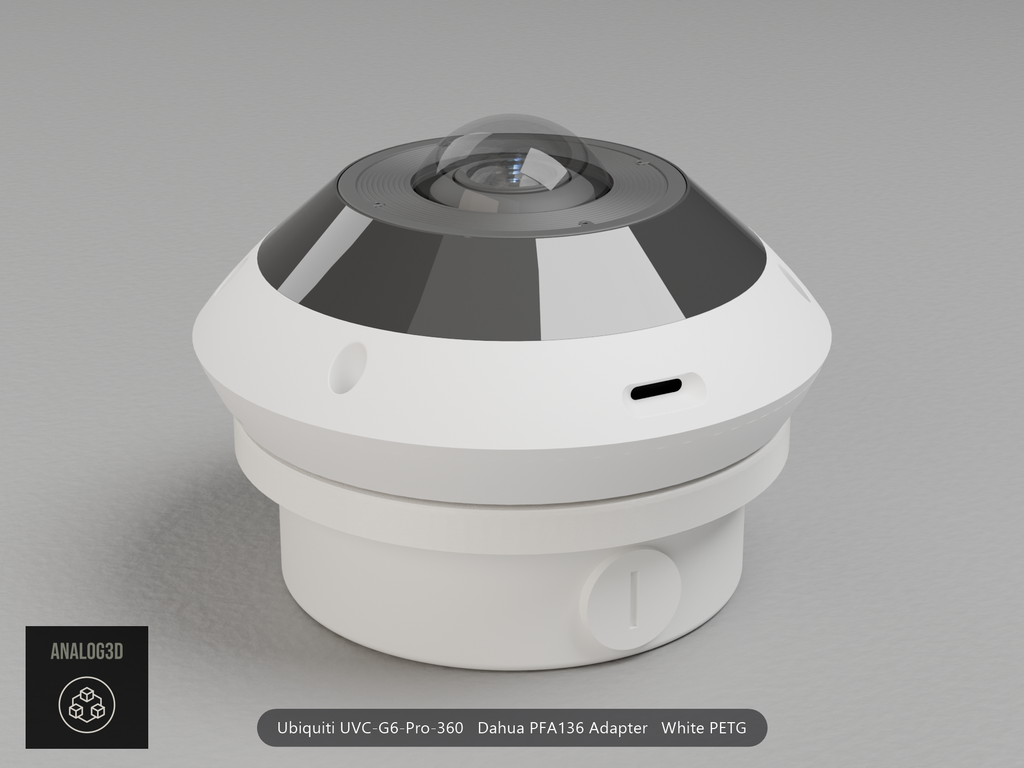

• PFA136: Dahua round aluminum junction box, 110 mm diameter x 34 mm (2018 revision; the 2025 revision is 114.8 x 32 mm), 3 x M4 camera-plate holes on a 98 mm circle, G1/2 outlets. Plate: 113.5 mm disc, 10 mm thick, rim seats on the box face, 3 x 5 mm holes on the 98 mm pattern. Dahua specs

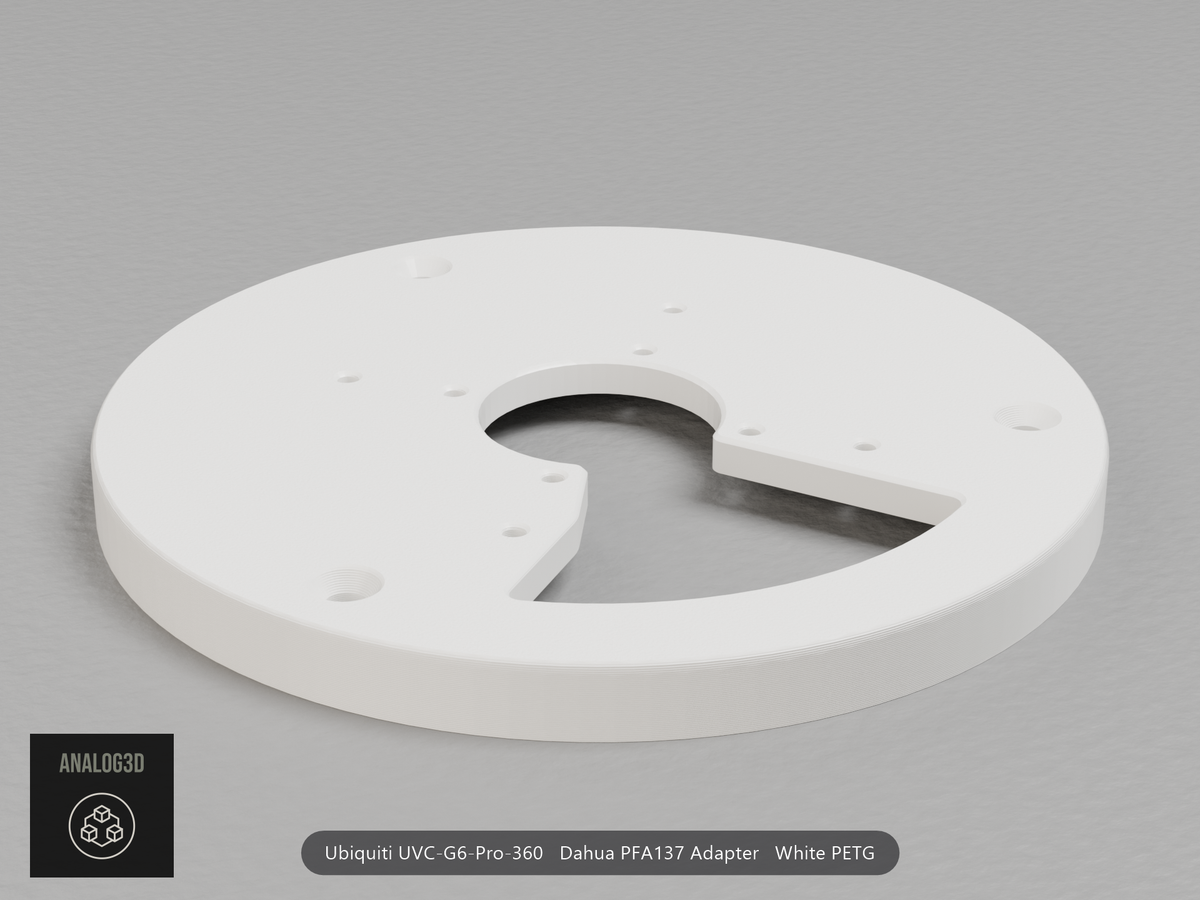

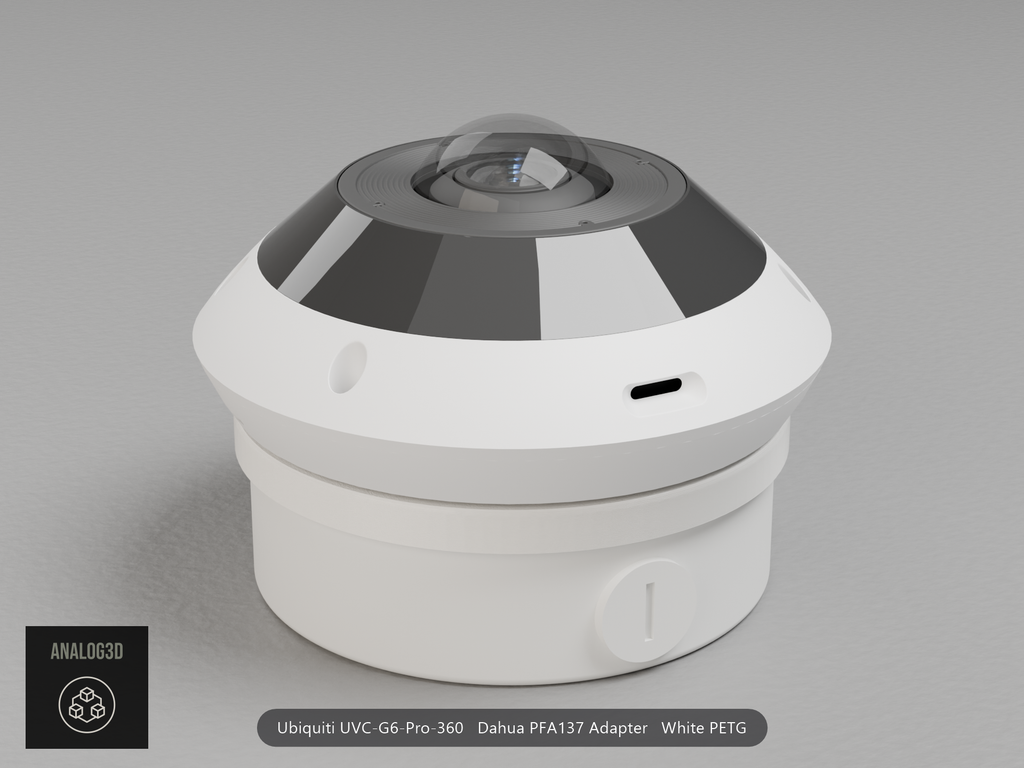

• PFA137: Dahua round aluminum junction box, 123.6 mm diameter x 34.2 mm, 3 x M4 camera-plate holes on a 110 mm circle, G1/2 outlets (the PFA130-E body shares the 110 mm pattern). Plate: 127 mm disc, 10 mm thick, rim seats inside the box rim, 3 x 5 mm holes on the 110 mm pattern. Dahua specs

Fits the Ubiquiti UVC-G6-Pro-360. The plate carries the mounting pattern of the camera's own base plate: screw the stock base plate to the adapter with the screws from the camera box, then lock the camera on as usual. The cable opening lines up with the base plate's cable channel.

10 mm thick plate with a recess on the box side; the camera cable passes through the center opening into the box.

Materials & Colors:

• White PETG
• Black PETG

PETG is a tough, impact-resistant plastic with excellent moisture, chemical, and UV resistance for long-lasting real-world use.

Required: uses the hardware included with your camera. Camera, Dahua box and box screws are not included.
