Reolink Dome & Turret Camera Junction Box Adapter Plates - Single Gang - Double Gang - 4 in Round

Made-to-order adapter plates that mount a Reolink dome or turret camera on a standard electrical box. Reolink's twist-lock mounting plate has its own screw pattern, and it lines up with nothing on a gang box. This plate screws to the box and gives the Reolink plate a solid base with the right spacing, so nothing gets drilled into brick or stucco. Pick your box below.

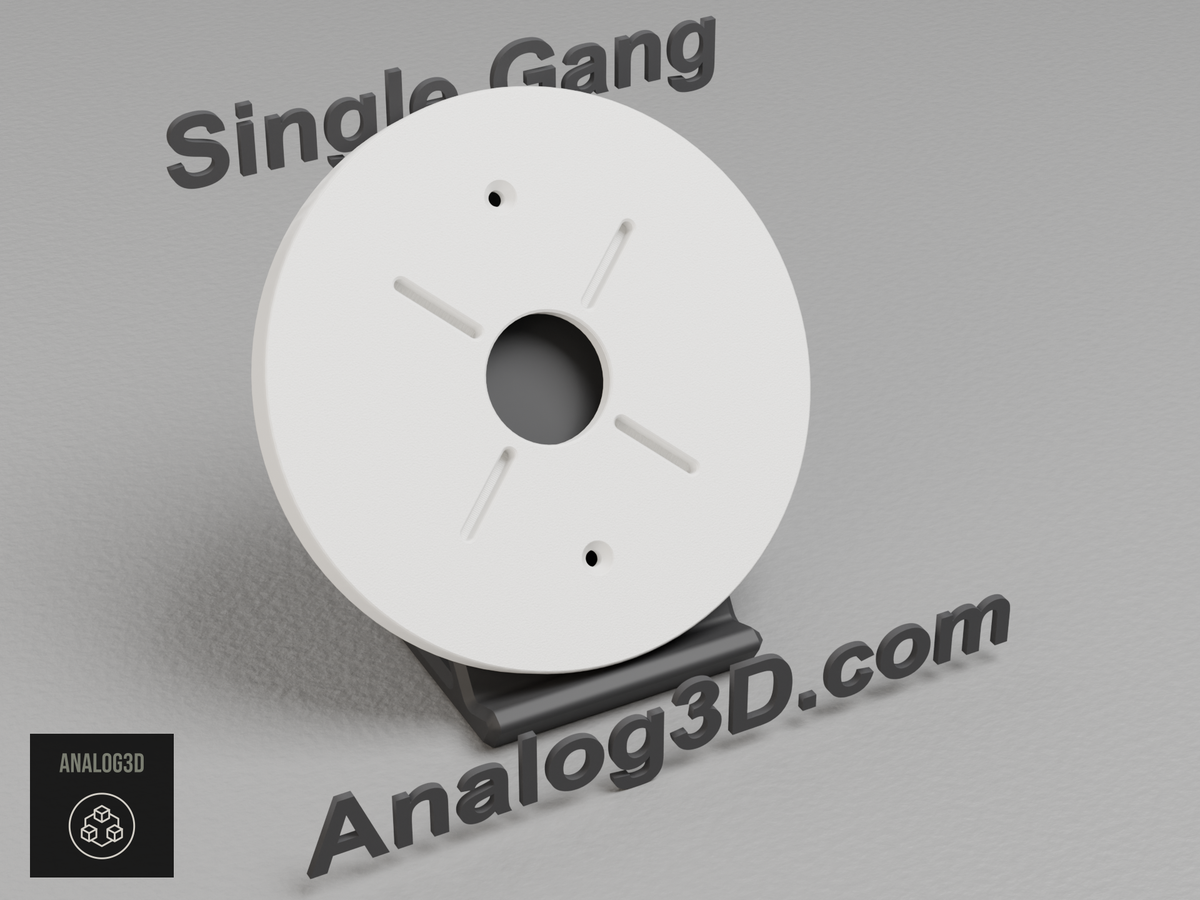

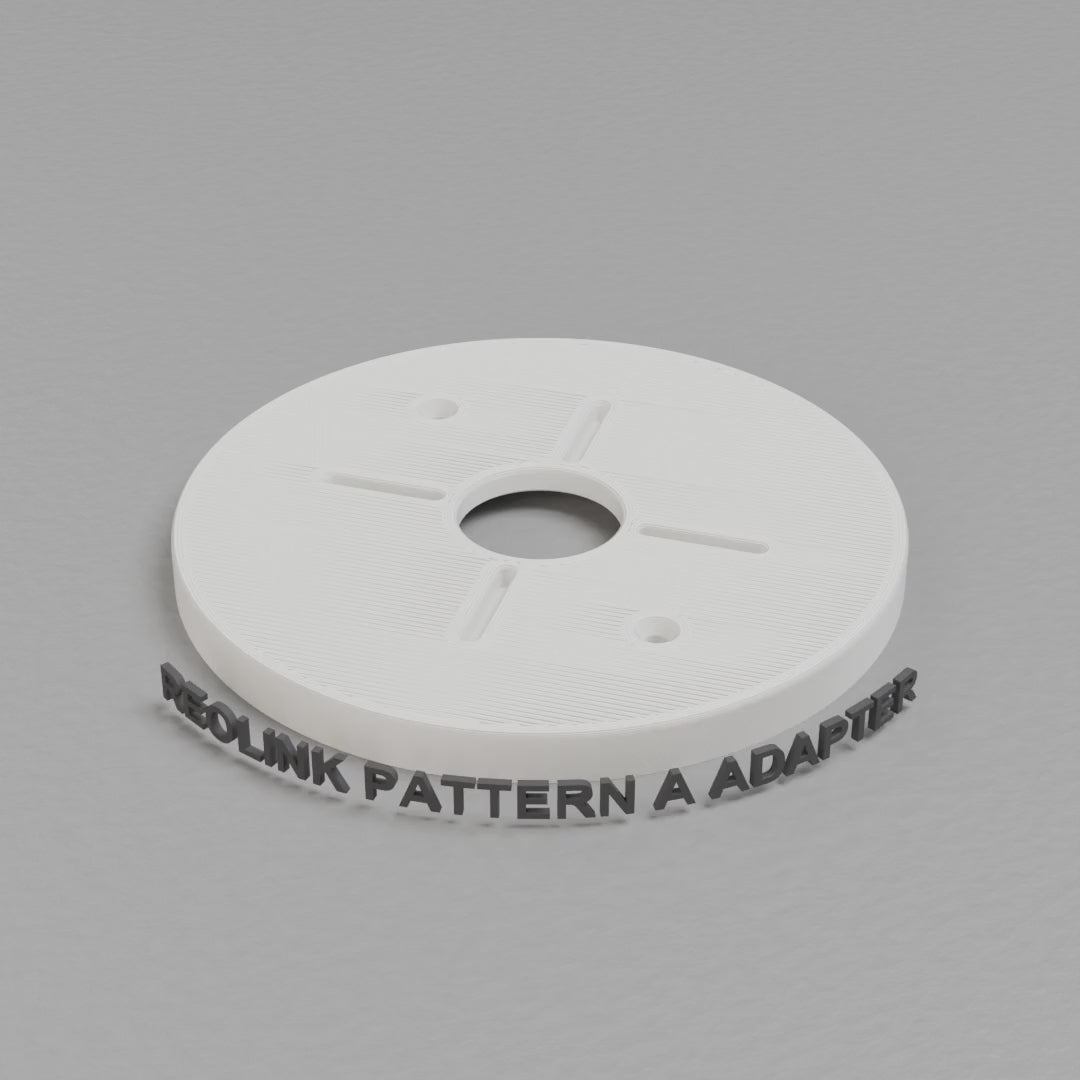

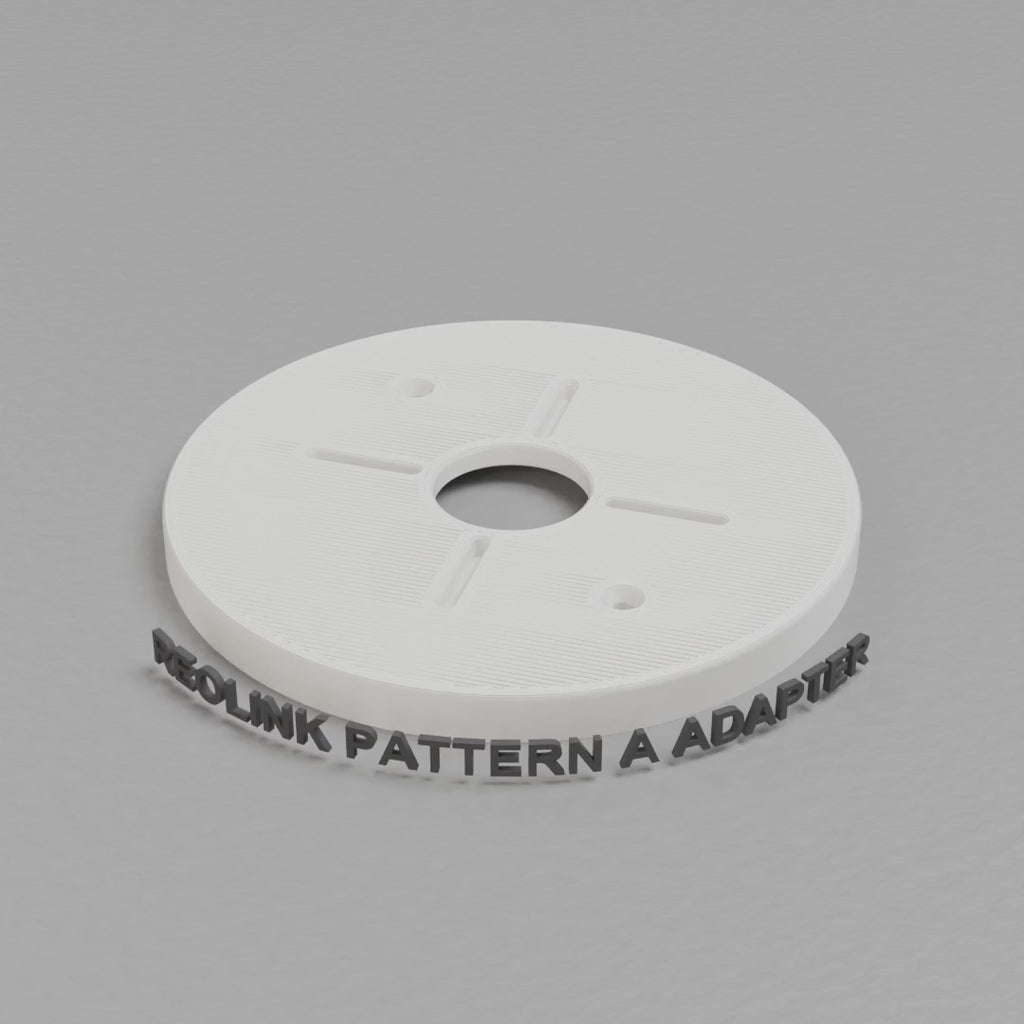

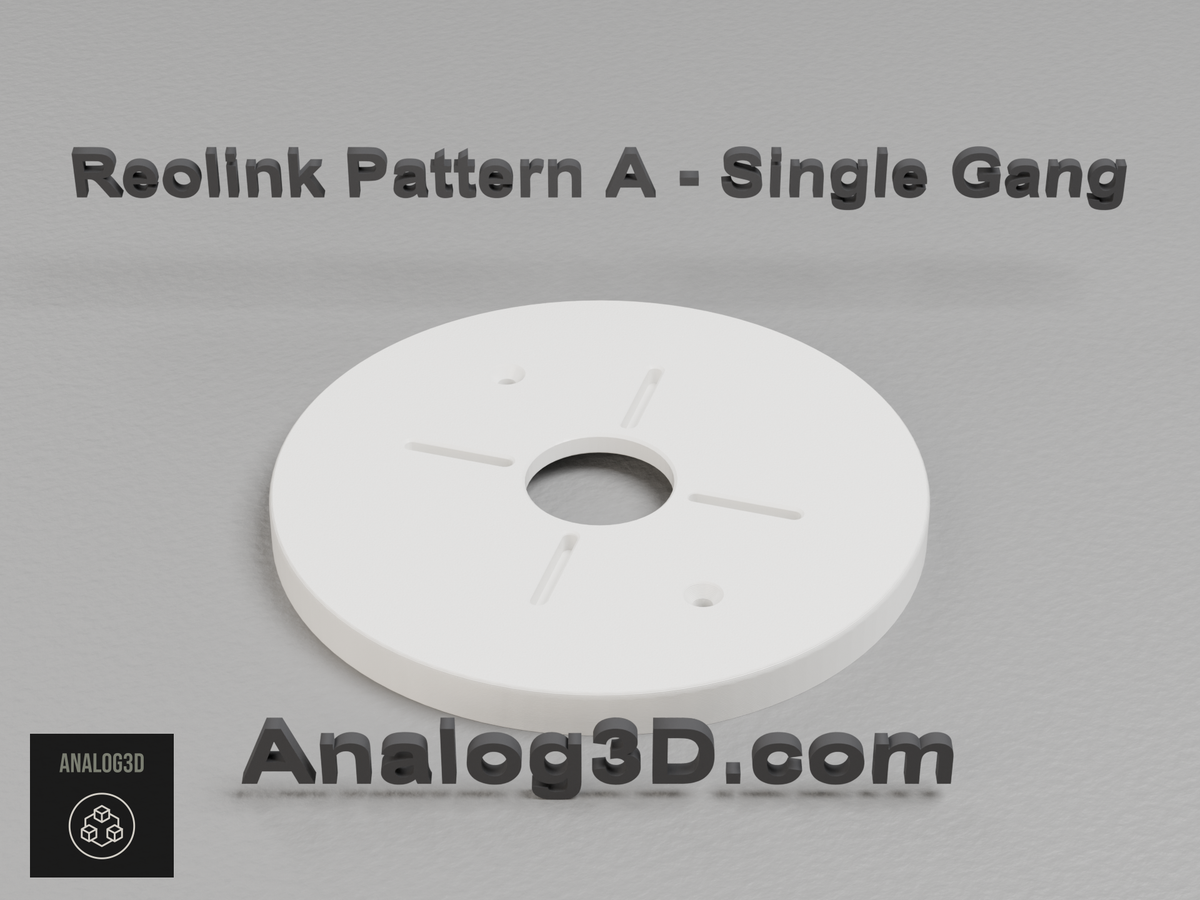

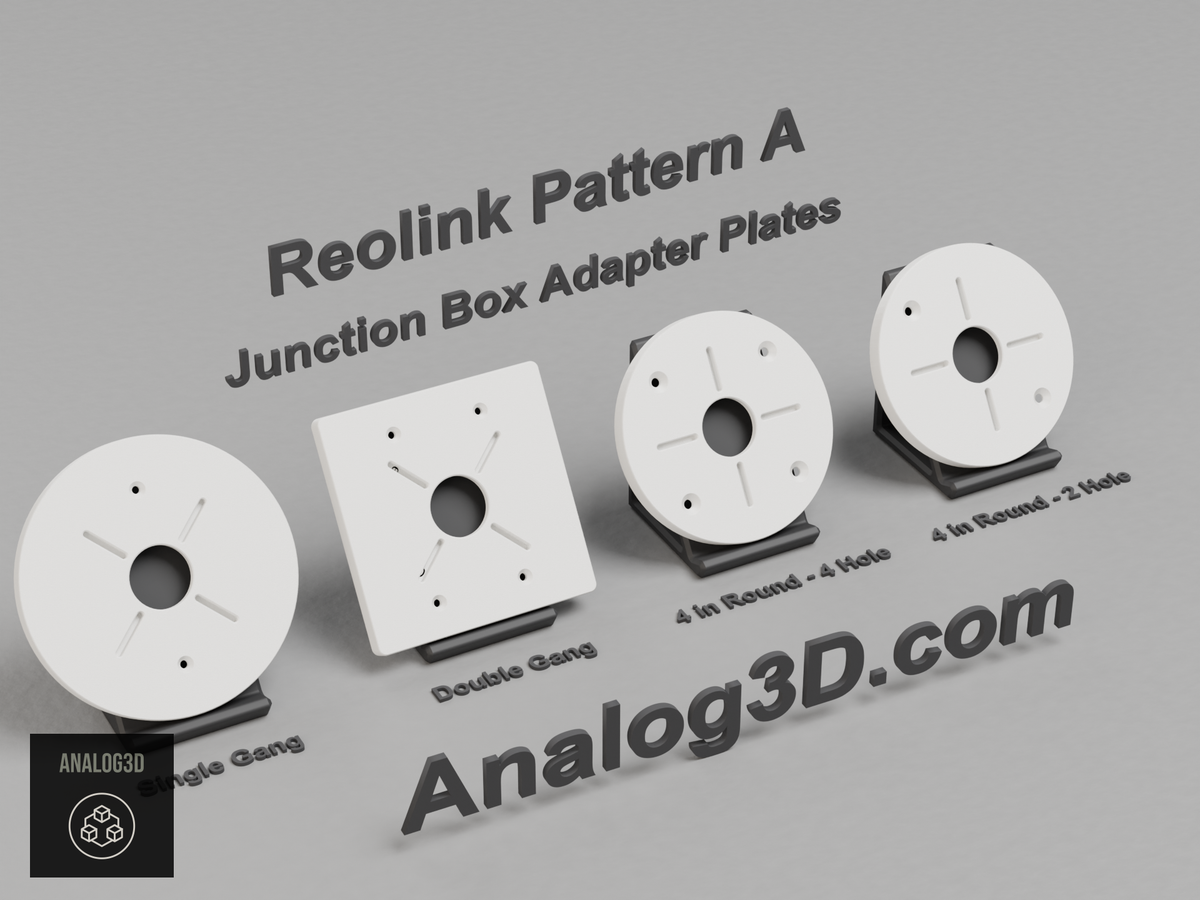

• Single gang - Ø131 mm round plate for a standard single-gang box or mud ring (the box screws sit on the usual single-gang spacing).

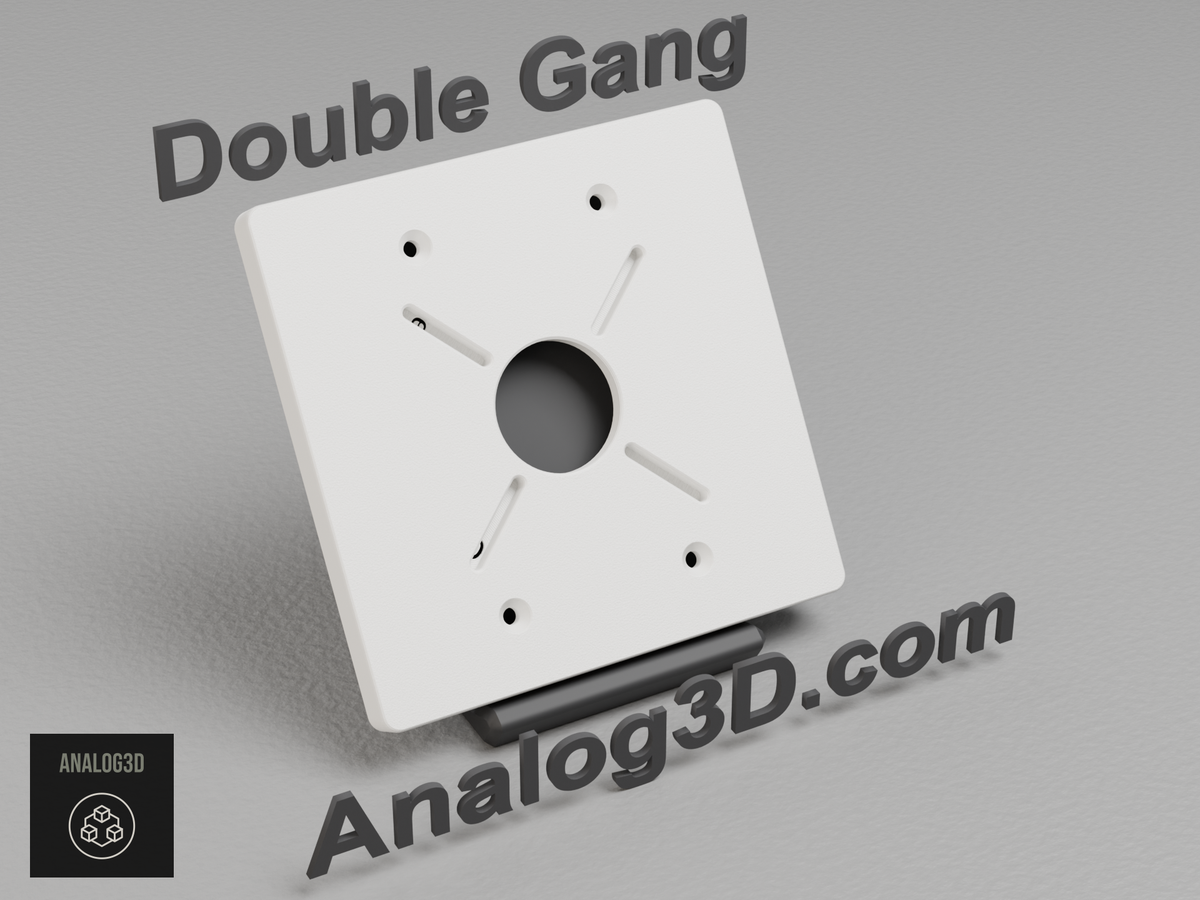

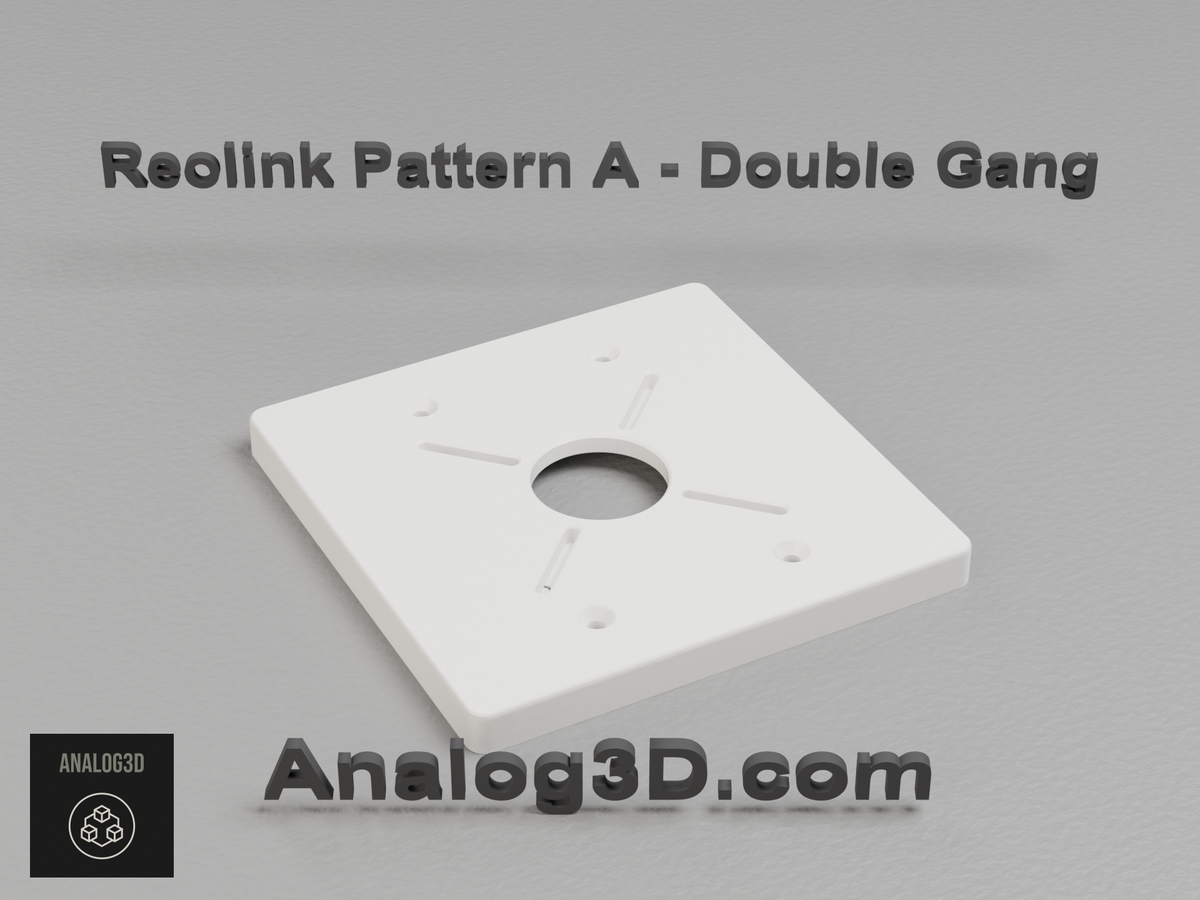

• Double gang - 117 x 117 mm square plate for a standard double-gang box.

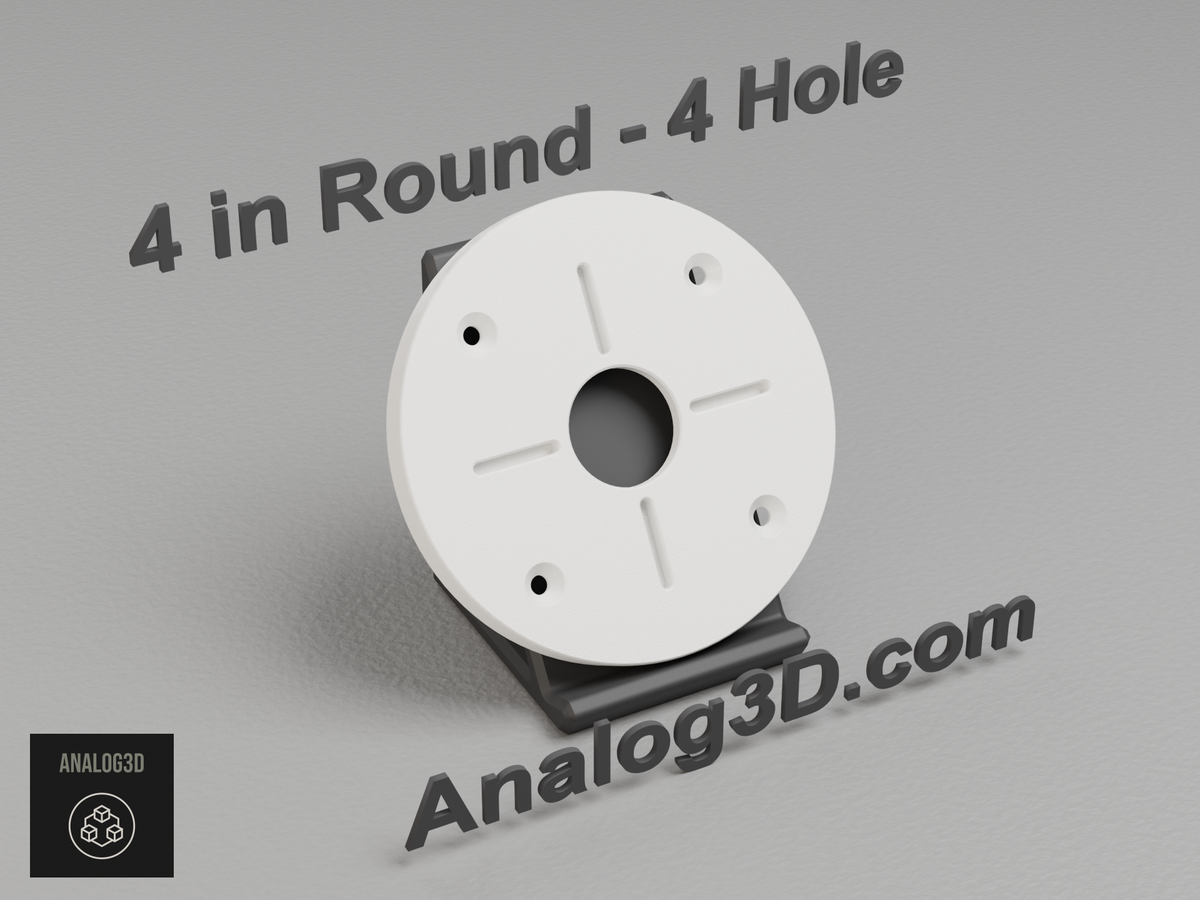

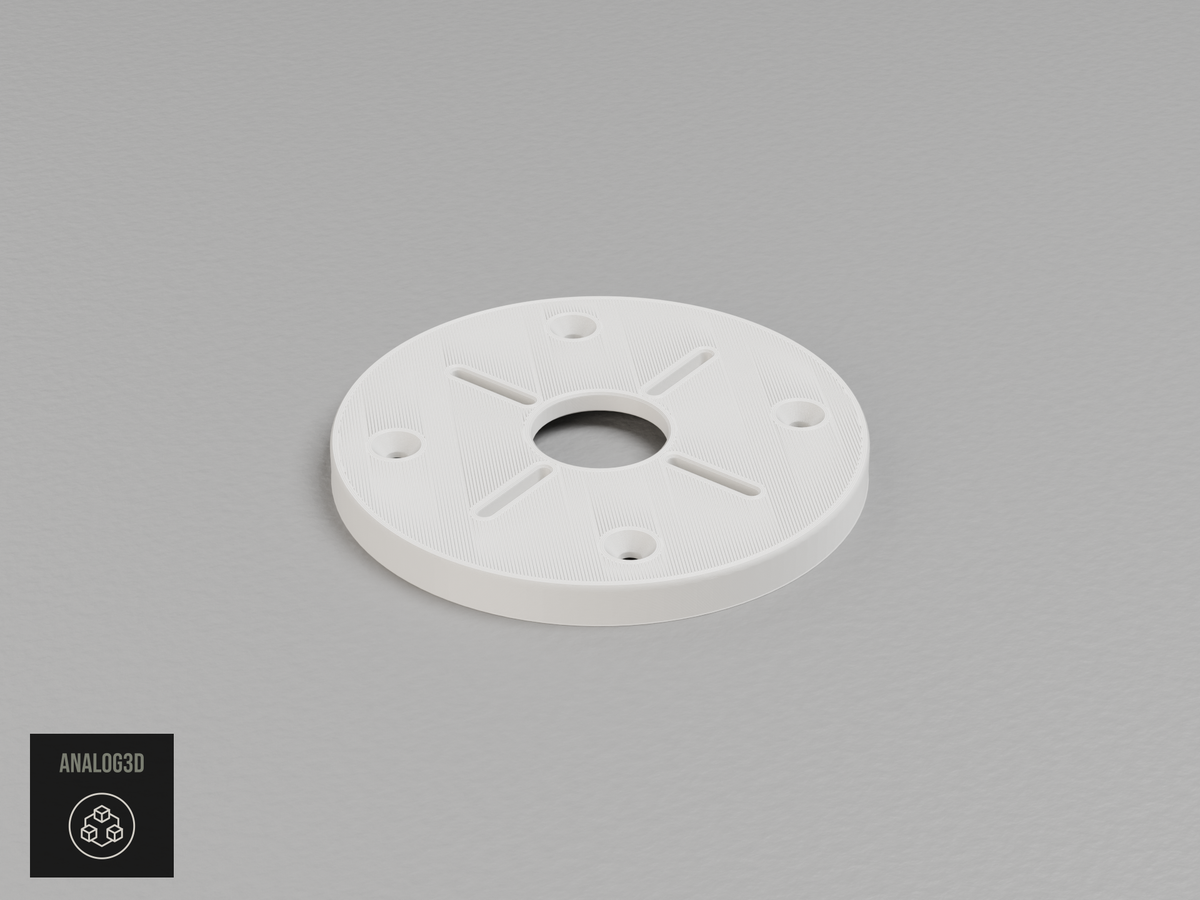

• 4 in round, 4 hole - Ø117 mm round plate for 4-inch round and octagon boxes with four screw bosses.

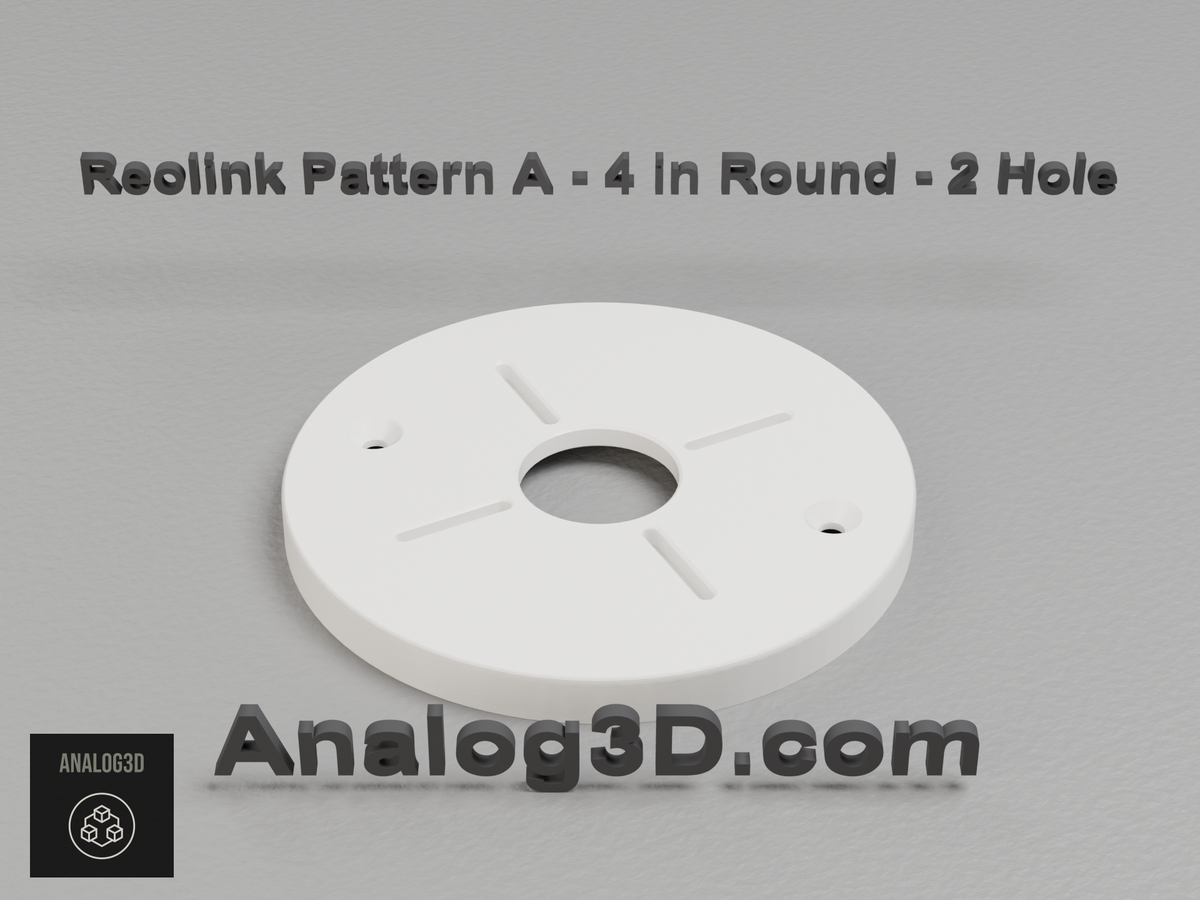

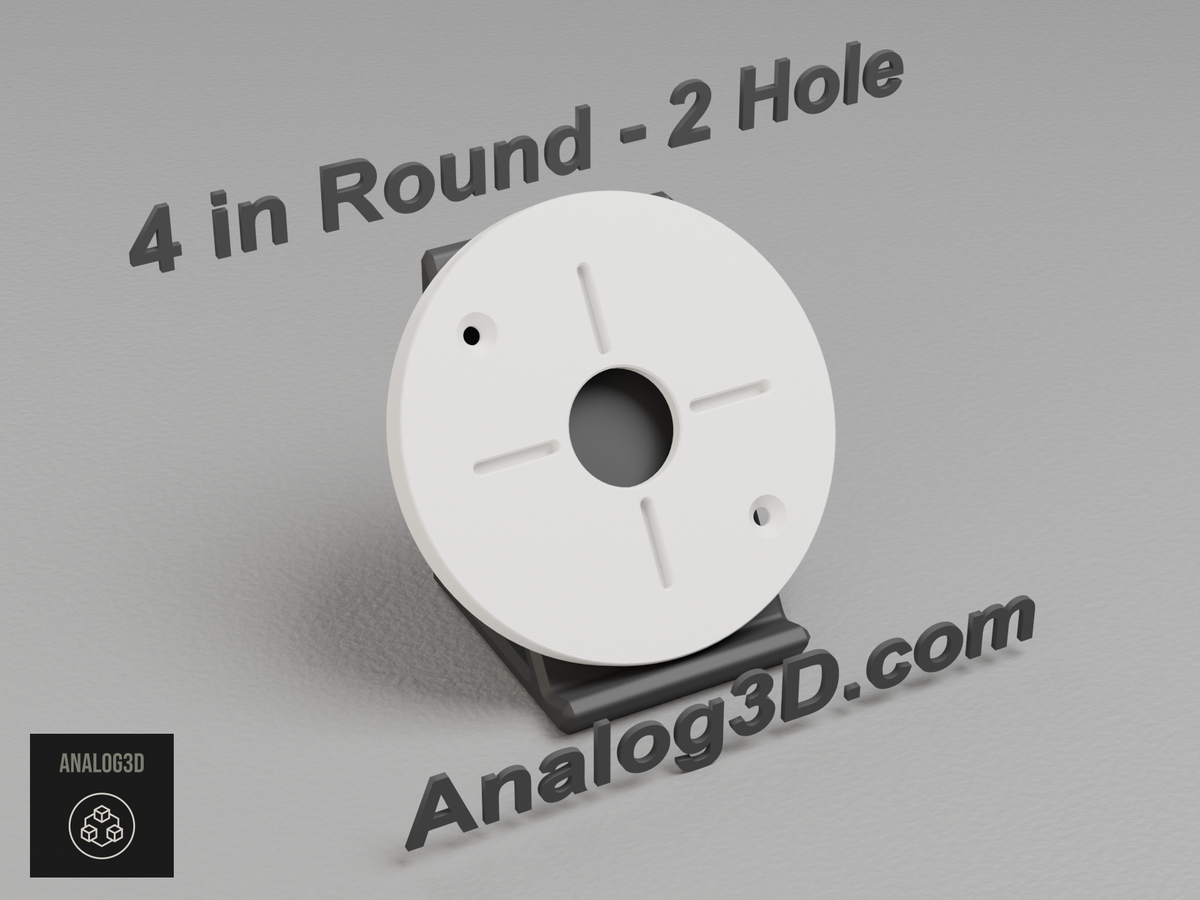

• 4 in round, 2 hole - the same Ø117 mm disc with two diagonal screw holes for boxes and covers that only offer two.

Fits every Reolink camera that ships with the round 4-screw twist-lock mounting plate (Reolink calls this hole pattern Pattern A on its RLA-JBL1 junction box): RLC-520, RLC-520A, RLC-522, RLC-820A, RLC-822A, RLC-824A, RLC-833A, RLC-1224A, D400, D500, D800, D1200, CX820, RP-PCT8M, RP-PCT12M, P324, P325, P334, P335, P335X, P344, P345 (and the -C variants), P433, P434 and NVC-D12M. Reolink's own install guide for this plate family: How to install RLC-520 / 520A / 522 / 820A / 822A / 824A / 833A / 1224A / D400 / D800 / CX820. The pattern list by model: Reolink RLA-JBL1 junction box guide. Camera specs: RLC-833A, RLC-820A, RLC-520A.

How it installs: screw the plate to the box with the box's own screws. Turn the Reolink mounting plate until its four holes sit over the four screw grooves on the face of the adapter and drive the screws from the camera box straight in: the grooves guide the screws, so there is no measuring and no pilot drilling. Twist the camera onto its plate as usual. 10 mm thick plate; the camera cable passes through the centre opening into the box.

Materials & Colors:

• White PETG
• Black PETG
• Carbon Fiber PETG

PETG is a tough, impact-resistant plastic with excellent moisture, chemical, and UV resistance for long-lasting real-world use.

Required: uses the mounting plate and screws included with your camera. Camera, electrical box and box screws are not included.
