UVC-G6-Edge-Turret Dahua Box Mount Adapters - PFA136 - PFA137

Made-to-order adapter plates that mount a Ubiquiti UVC-G6-Edge-Turret on a Dahua junction box. Swapping Dahua for UniFi? Keep the box that is already on the wall. Pick your Dahua box below.

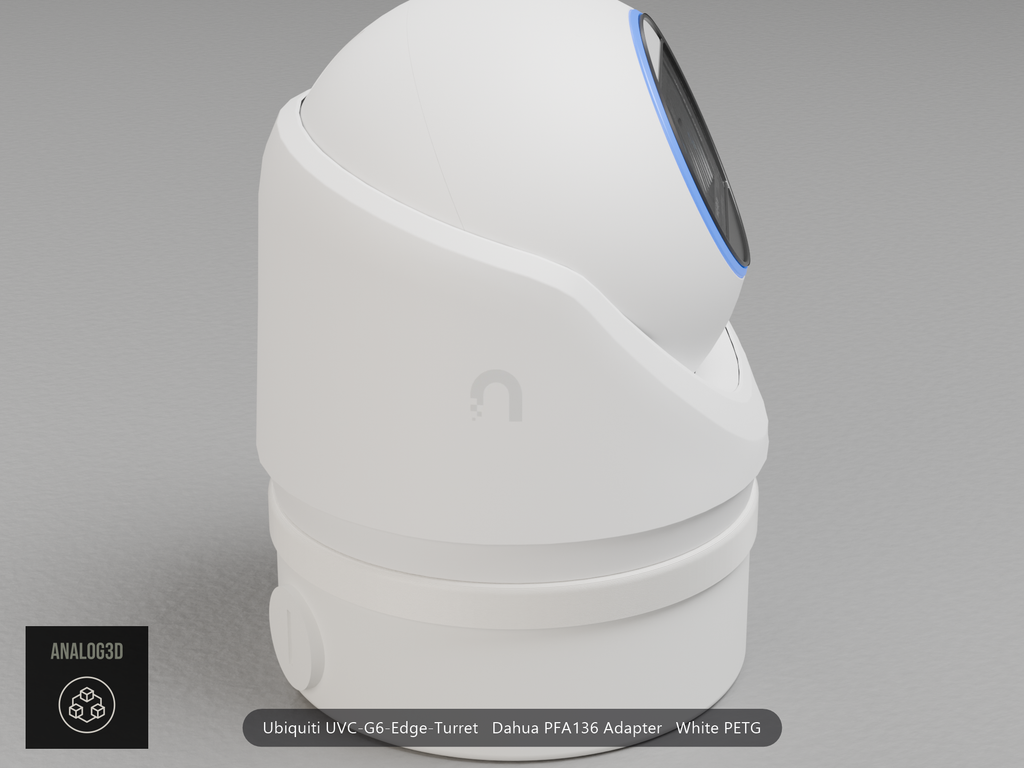

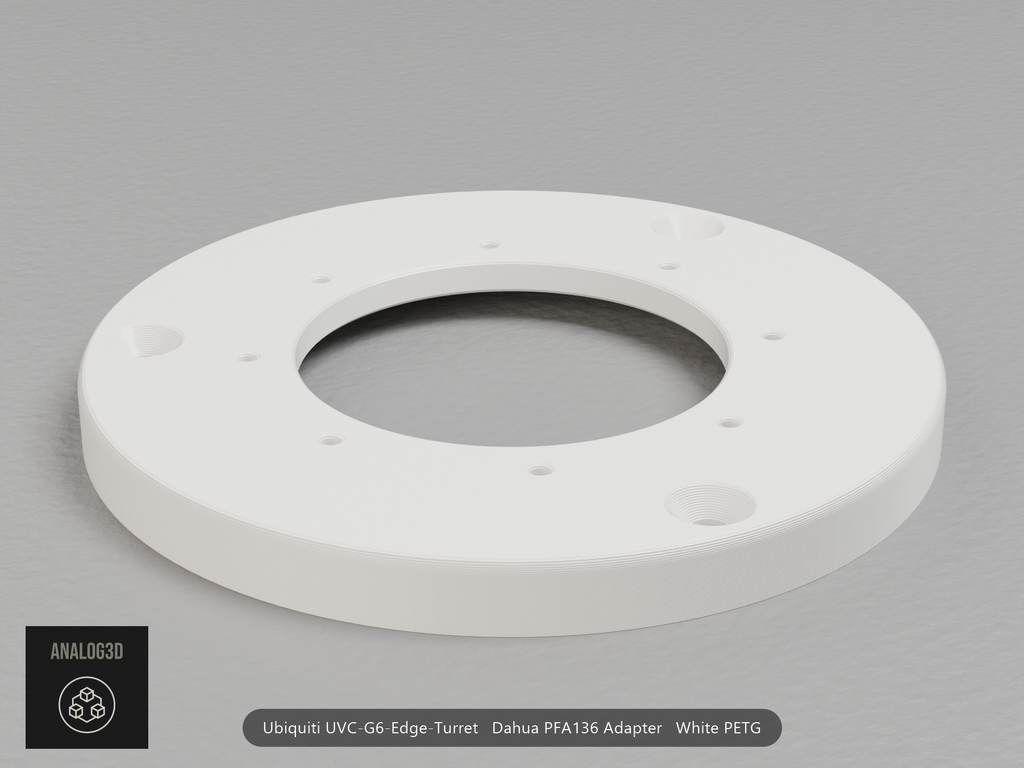

• PFA136: Dahua round aluminum junction box, 110 mm diameter x 34 mm (2018 revision; the 2025 revision is 114.8 x 32 mm), 3 x M4 camera-plate holes on a 98 mm circle, G1/2 outlets. Plate: 113.5 mm disc, 10 mm thick, rim seats on the box face, 3 x 5 mm holes on the 98 mm pattern. Dahua specs

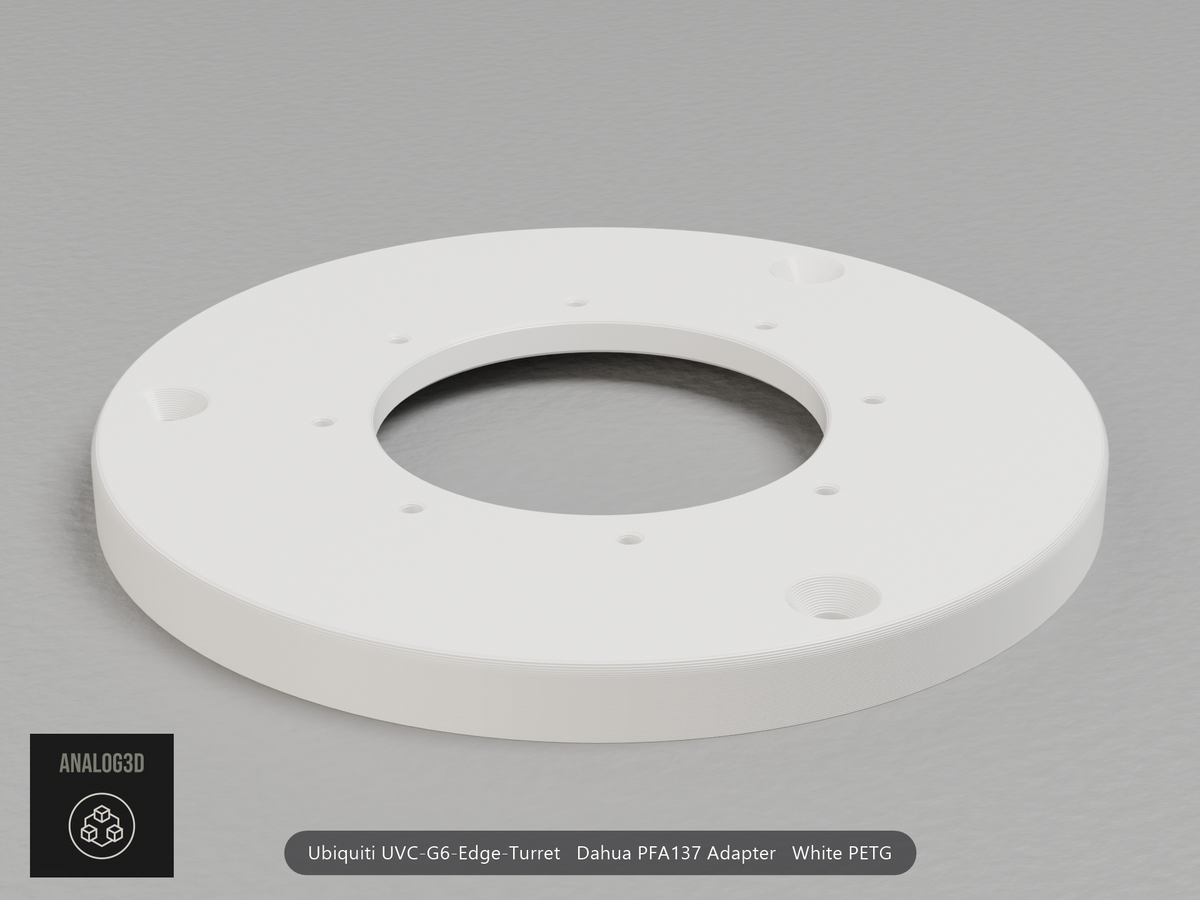

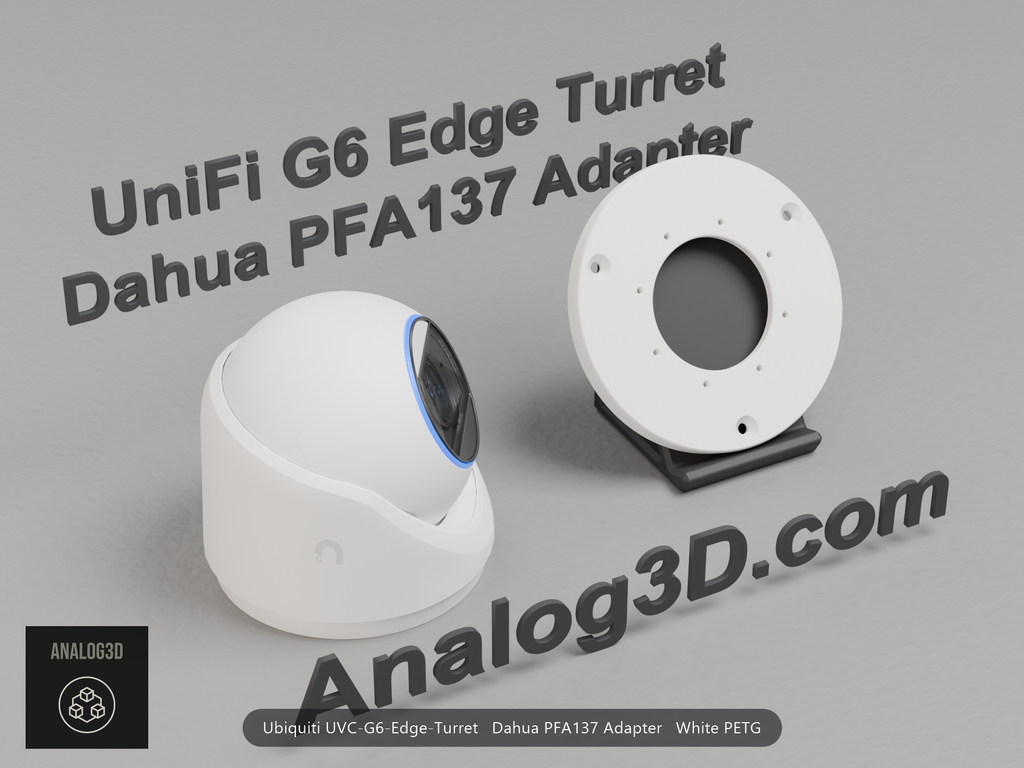

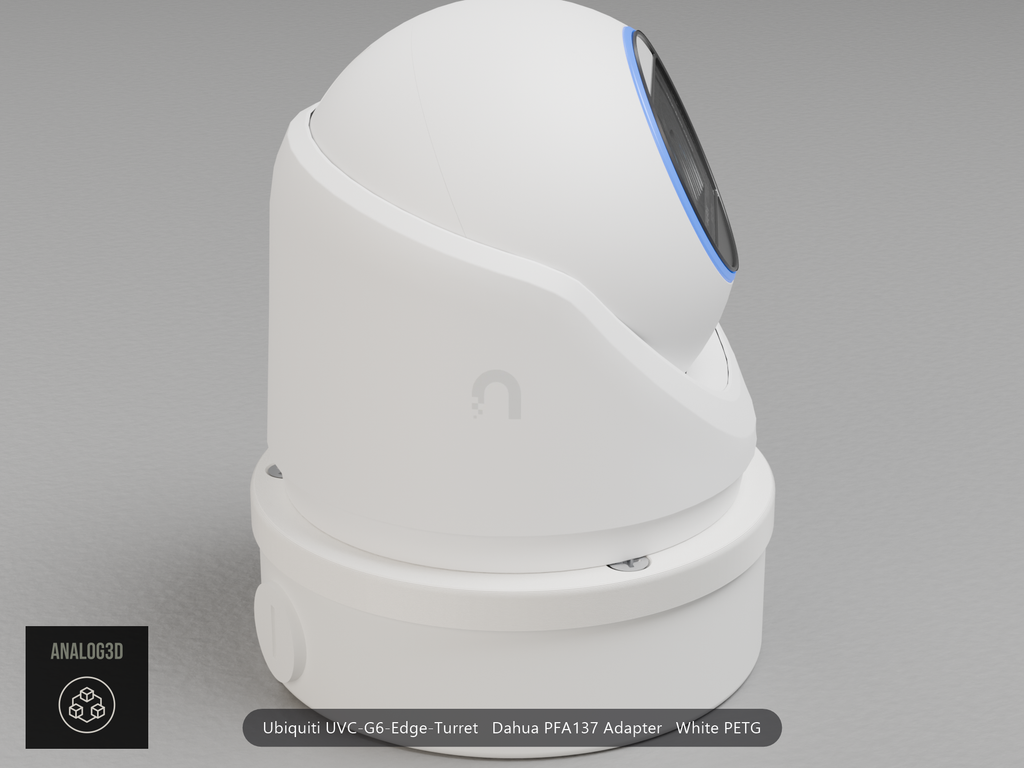

• PFA137: Dahua round aluminum junction box, 123.6 mm diameter x 34.2 mm, 3 x M4 camera-plate holes on a 110 mm circle, G1/2 outlets (the PFA130-E body shares the 110 mm pattern). Plate: 127 mm disc, 10 mm thick, rim seats inside the box rim, 3 x 5 mm holes on the 110 mm pattern. Dahua specs

Fits the Ubiquiti UVC-G6-Edge-Turret. The plate carries the camera's own twist-lock base pattern: fasten it with the screws from the camera box.

10 mm thick plate with a recess on the box side; the camera cable passes through the center opening into the box.

Materials & Colors:

• White PETG

PETG is a tough, impact-resistant plastic with excellent moisture, chemical, and UV resistance for long-lasting real-world use.

Required: uses the hardware included with your camera. Camera, Dahua box and box screws are not included.
