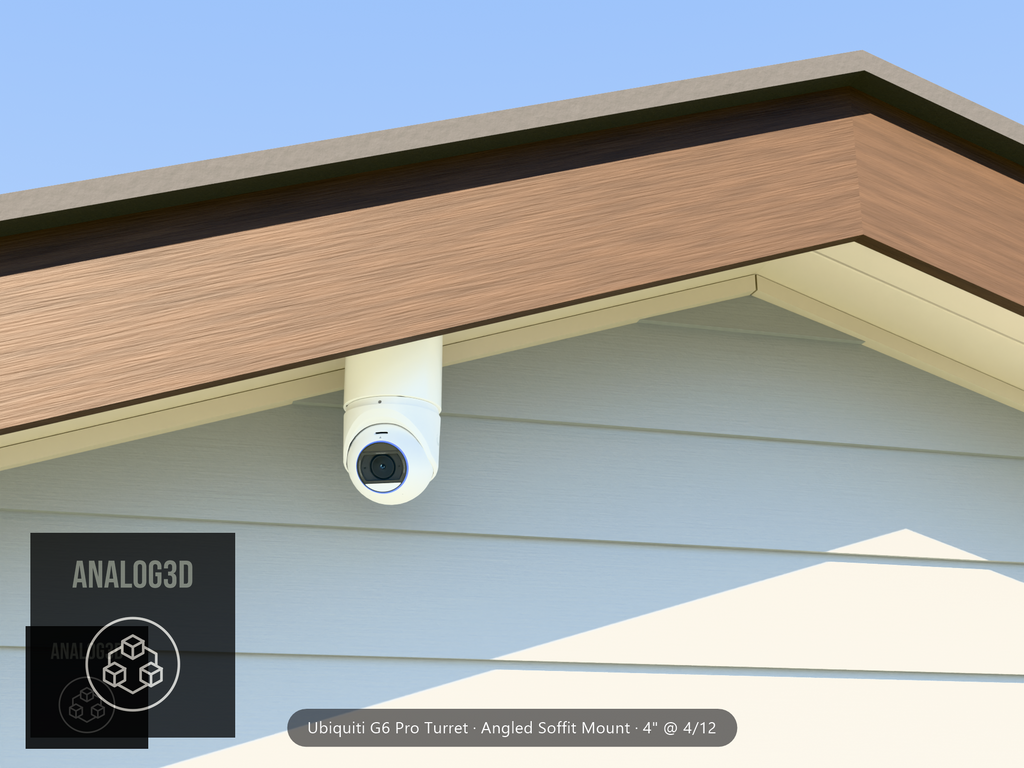

  • UVC-G6 Pro Turret on an open eave — installed scene

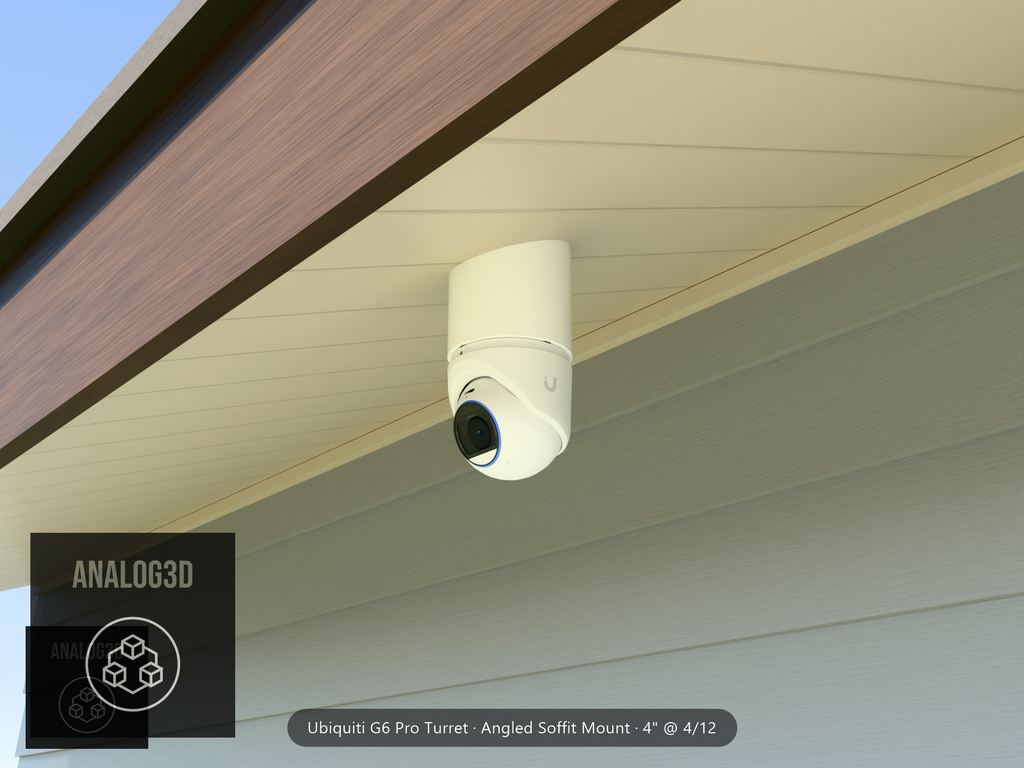

  • UVC-G6 Pro Turret on an angled soffit — installed scene

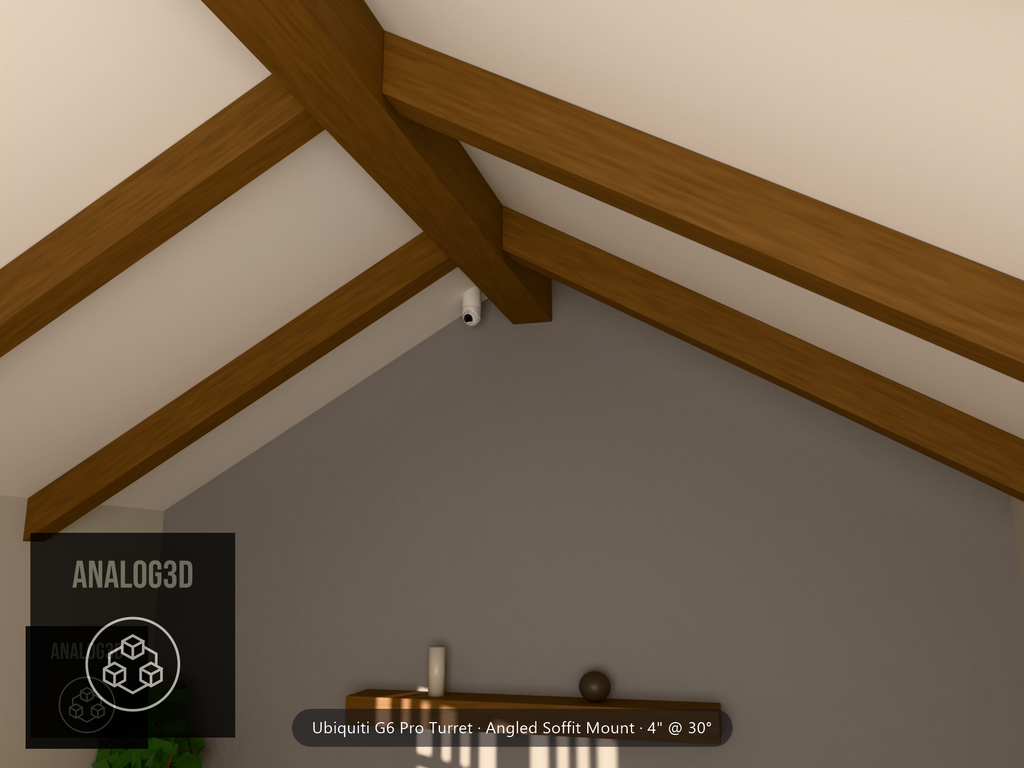

  • UVC-G6 Pro Turret on a vaulted ceiling — installed scene
  • uvc-g6-pro-turret-soffit — white PETG product render
  • uvc-g6-pro-turret-soffit — black PETG product render
  • uvc-g6-pro-turret-soffit — carbon PETG product render

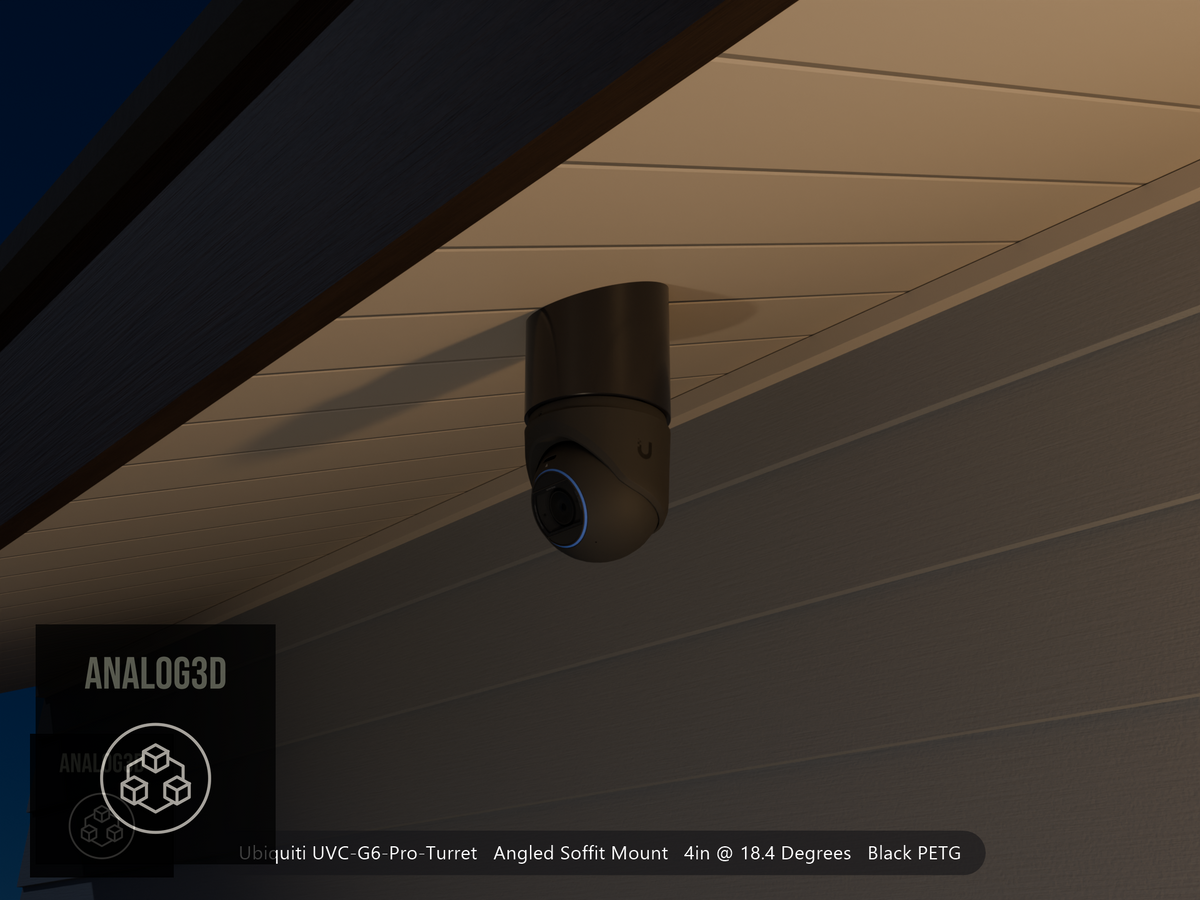

  • Ubiquiti UVC-G6-Pro-Turret black edition on black PETG angled soffit mount at night, 4in extension at 4/12 pitch

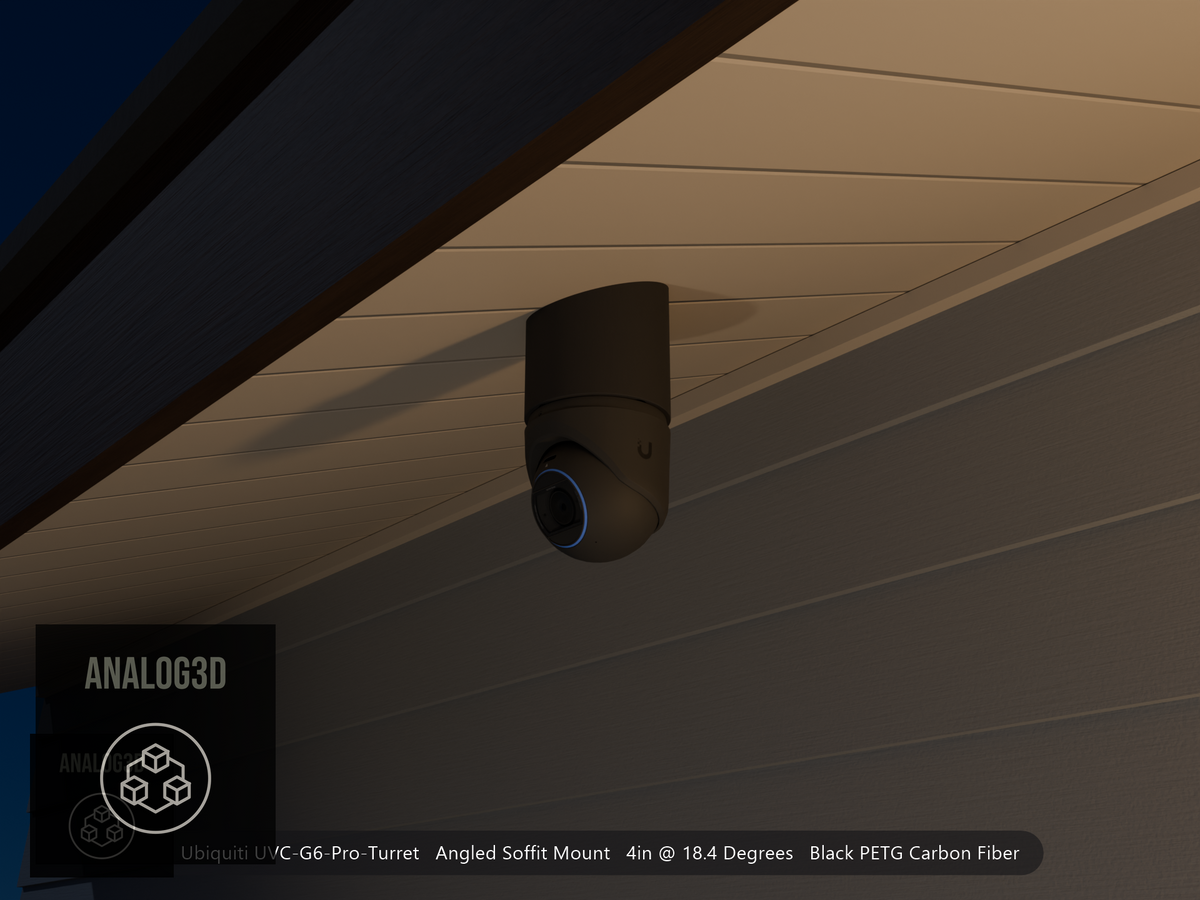

  • Ubiquiti UVC-G6-Pro-Turret black edition on black PETG carbon fiber angled soffit mount at night, 4in extension at 4/12 pitch

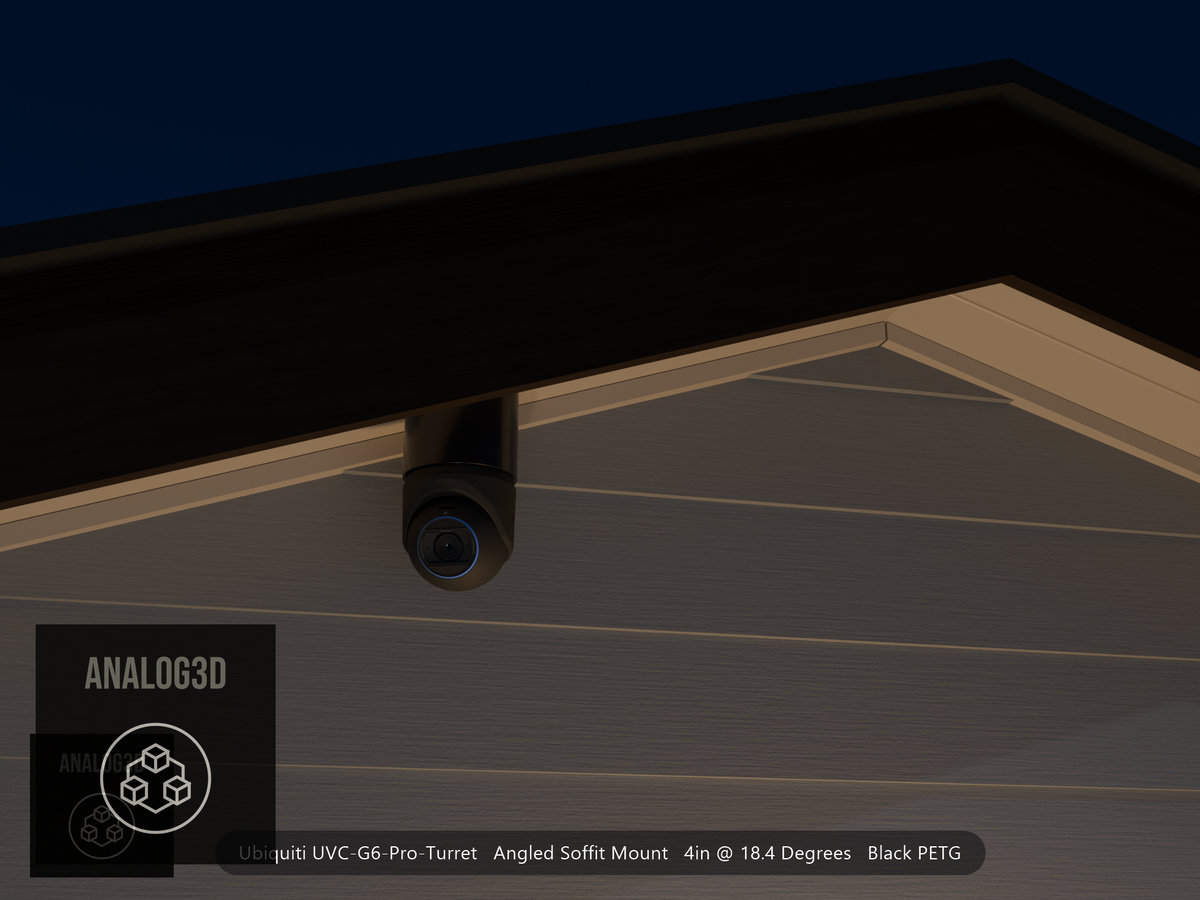

  • Ubiquiti UVC-G6-Pro-Turret black edition on black PETG angled soffit mount under a gable eave at night, 4in extension at 4/12 pitch
  • Ubiquiti UVC-G6-Pro-Turret black edition on black PETG carbon fiber angled soffit mount under a gable eave at night, 4in extension at 4/12 pitch

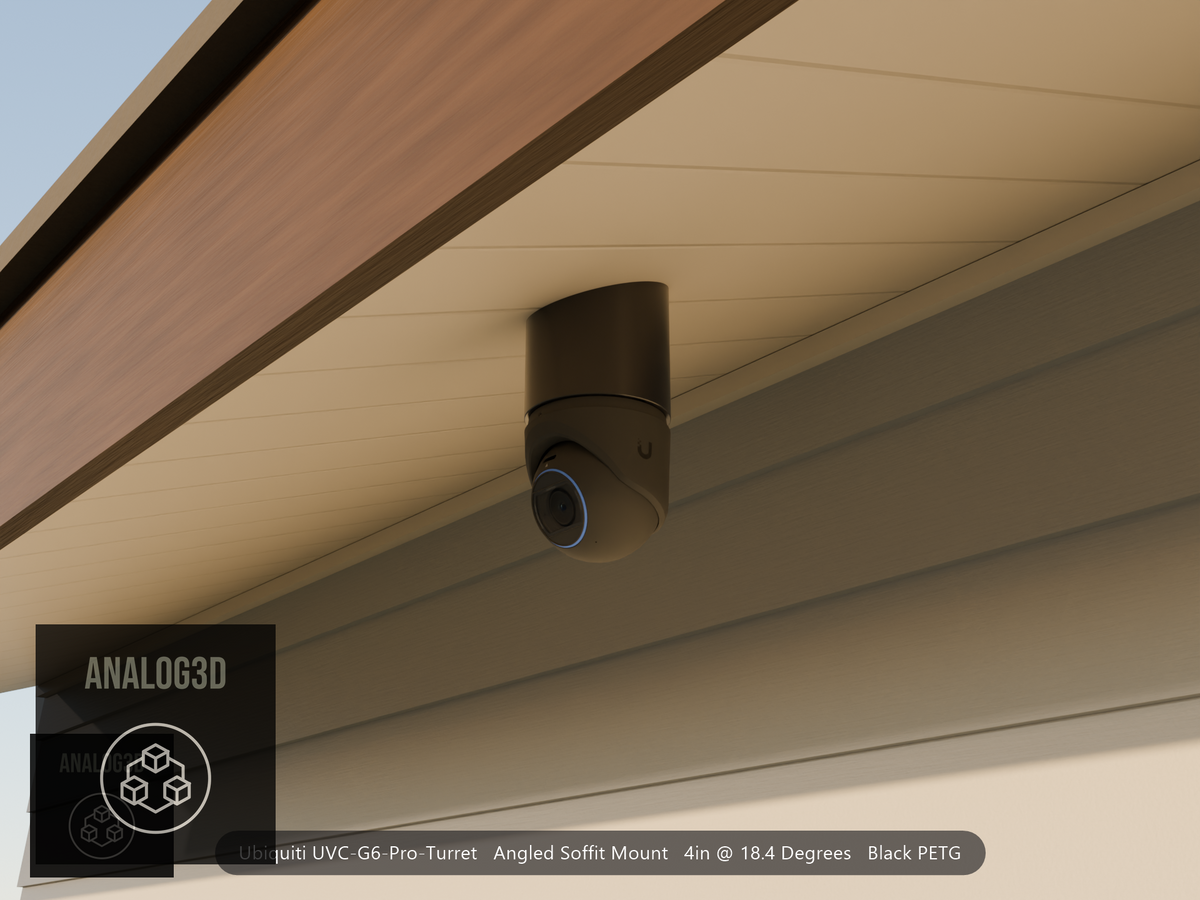

  • Ubiquiti UVC-G6-Pro-Turret black edition on black PETG angled soffit mount under a soffit at golden hour

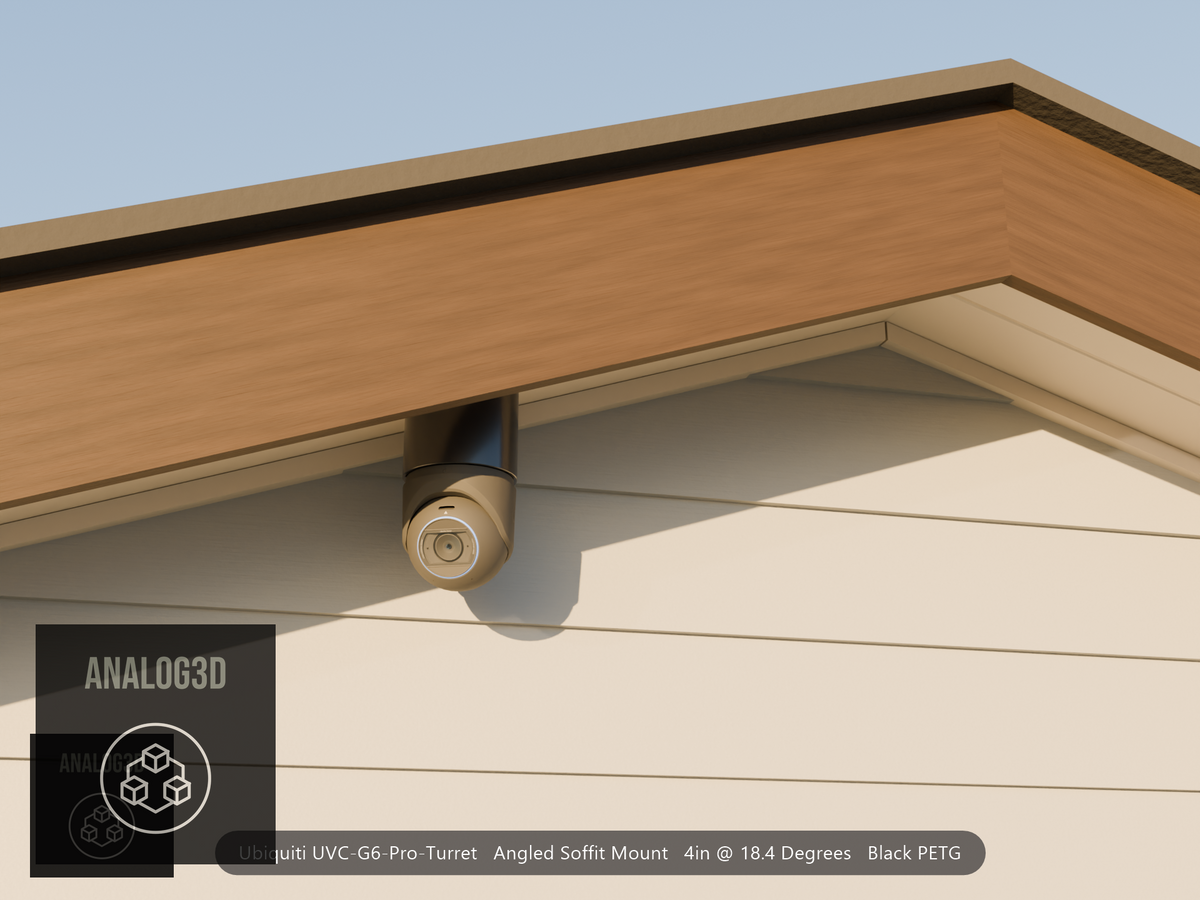

  • Ubiquiti UVC-G6-Pro-Turret black edition on black PETG angled soffit mount under a gable eave at golden hour

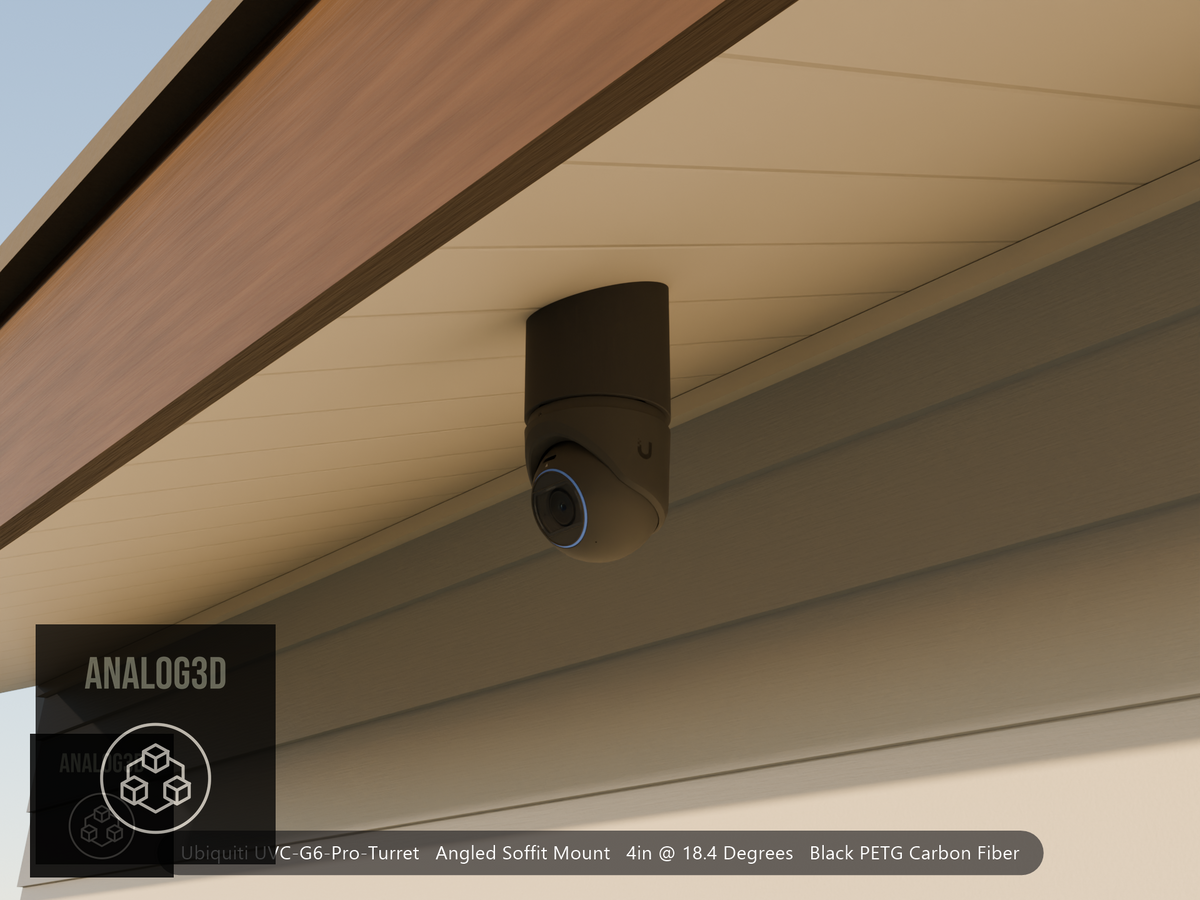

  • Ubiquiti UVC-G6-Pro-Turret black edition on black PETG carbon fiber angled soffit mount under a soffit at golden hour

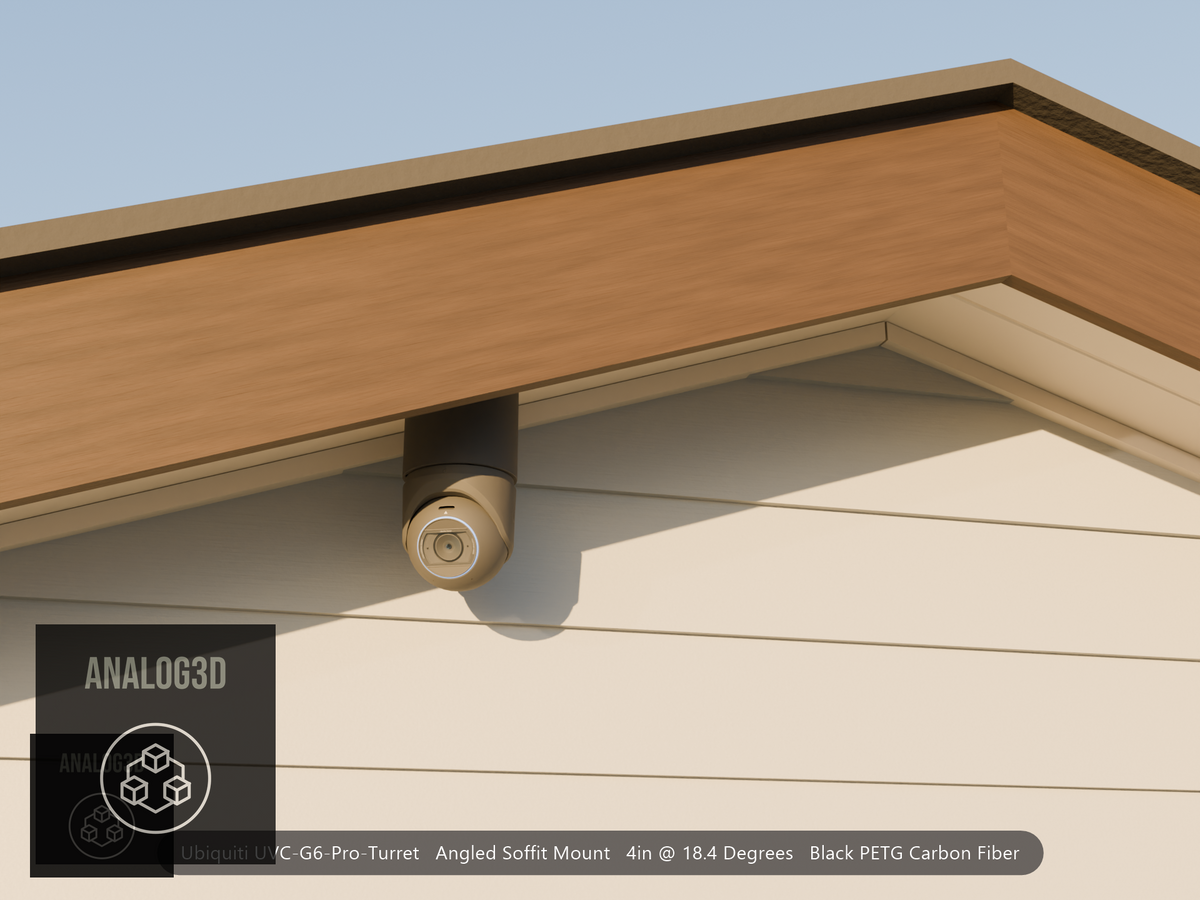

  • Ubiquiti UVC-G6-Pro-Turret black edition on black PETG carbon fiber angled soffit mount under a gable eave at golden hour
  • Cross-section of the self-centering screw bore and sacrificial layer
  • Unedited photo: UniFi angled soffit mount body, carbon fiber PETG, fresh off the print bed (same body across the UniFi soffit family)
  • Unedited photo: UniFi angled soffit mount body, white PETG, fresh off the print bed (same body across the UniFi soffit family)
Custom Angled Soffit Mount for UniFi UVC-G6 Pro Turret (Parametric)

Custom Angled Soffit Mount for UniFi UVC-G6 Pro Turret (Parametric)

Made-to-order angled soffit mount for the Ubiquiti UniFi UVC-G6 Pro Turret. Choose your exact roof pitch (1/12 through 12/12) and extension length (1" to 8") with the customizer — the mount hangs from your angled soffit, eave, or ceiling and gives the camera a flat, level mounting surface.

Self-centering screw bores. Each mounting screw drives up into the soffit through a bore that is open from below, so nothing needs access from above the ceiling. The top of the bore is a cone that funnels the screw tip to the hole and centers it, and a thin sacrificial layer over the hole holds the screw upright until the driver engages. Drop the screw in, seat the bit, and drive: the screw stays put even with the mount, the driver, and the camera overhead on a ladder.

Color & Material Choices

- White PETG

- Black PETG

- Black PETG Carbon Fiber

Made to order and 3D printed from CAD files I designed myself. Product images are renders of the actual CAD model and 3D printer toolpath geometry, produced in Blender.
drag to rotate

Build yours

Flat-rate shipping: $8.00 · USPS Ground Advantage
