UVC-AI-Dome Hikvision Box Mount Adapters - CB110 - DS-1273ZJ-130-TRL - DS-1272ZJ-120B

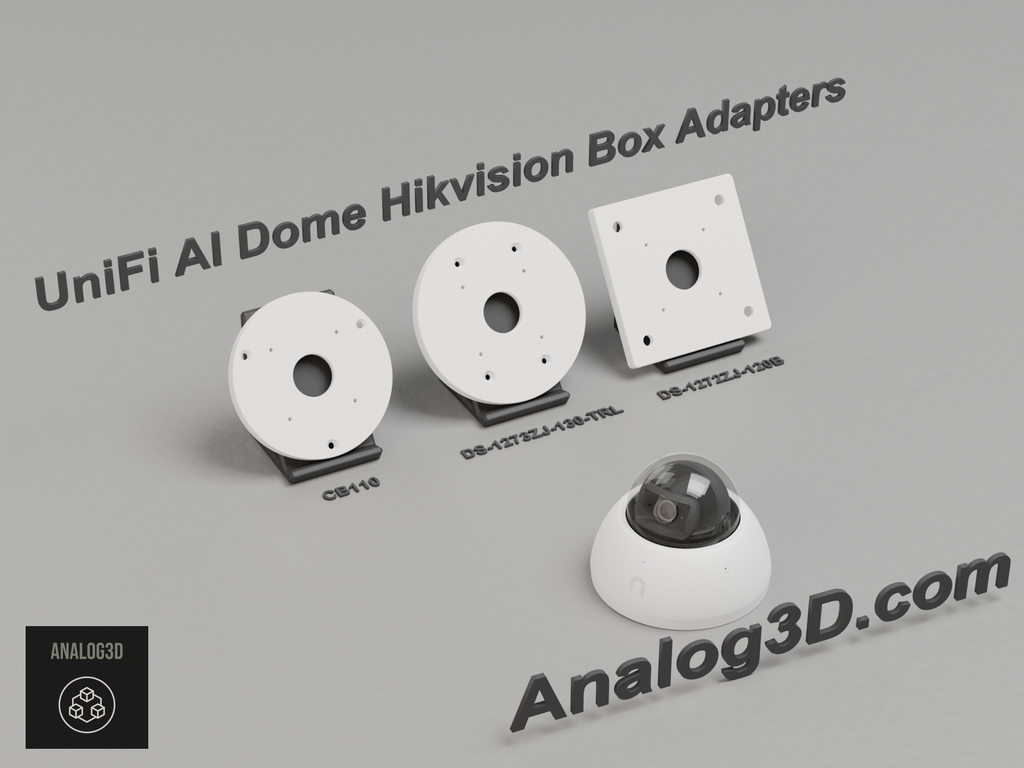

Made-to-order adapter plates that mount a Ubiquiti UVC-AI-Dome on a Hikvision junction box or wall bracket. Swapping Hikvision for UniFi? Keep the box or arm that is already on the wall. Pick your Hikvision box below.

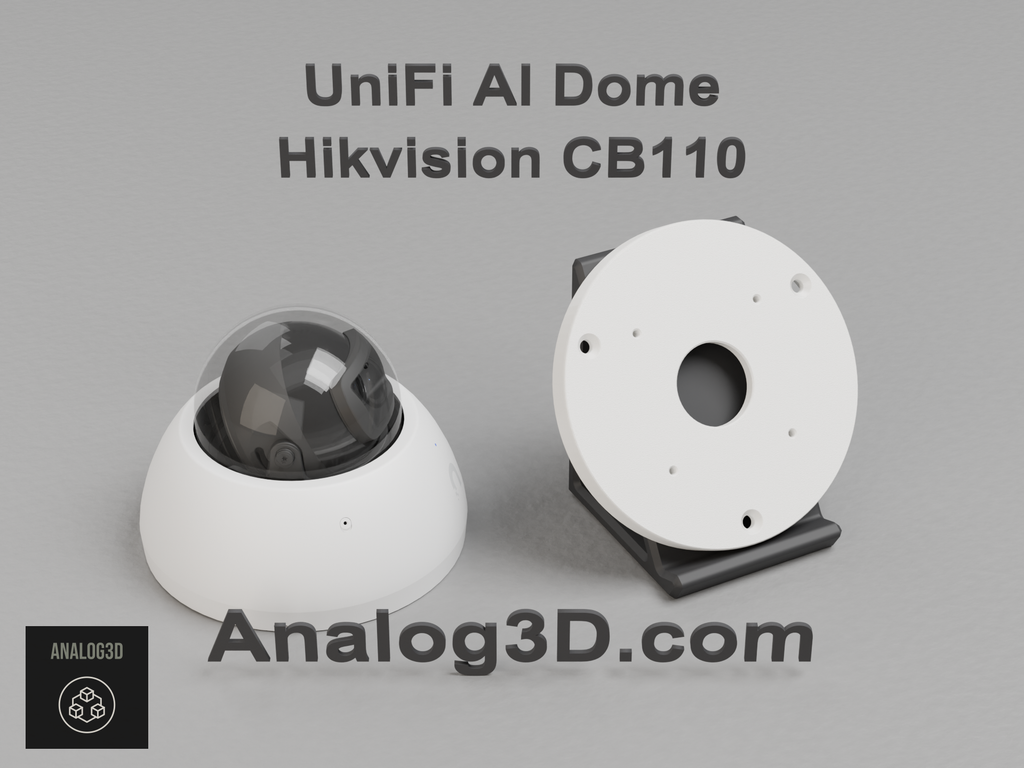

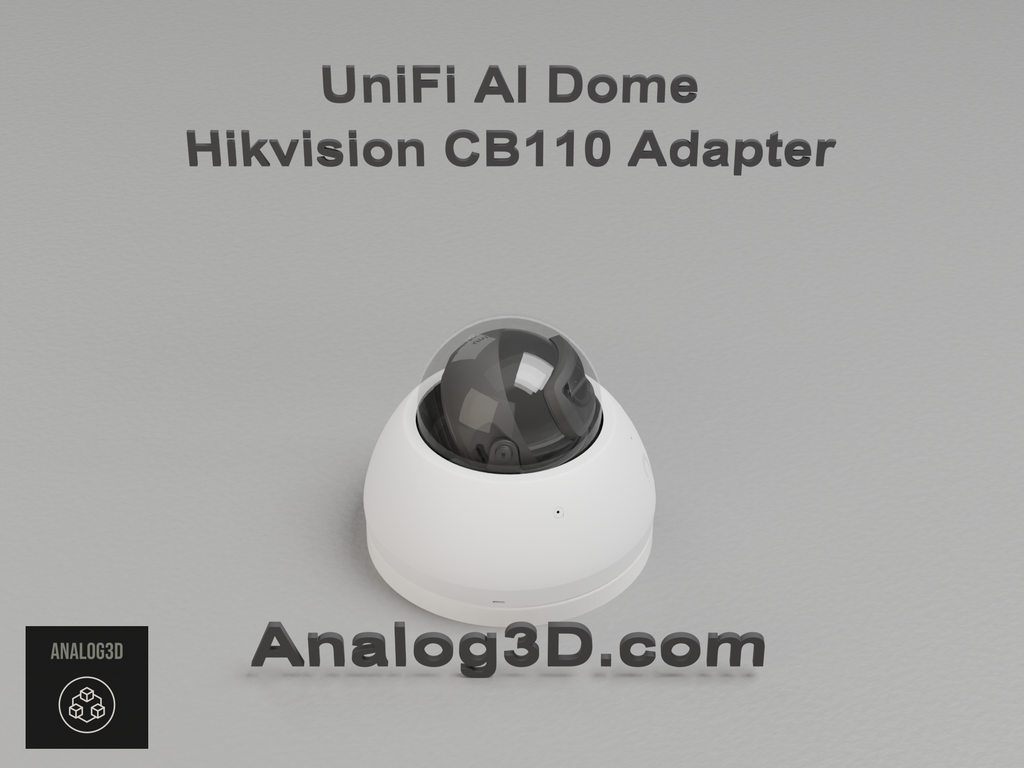

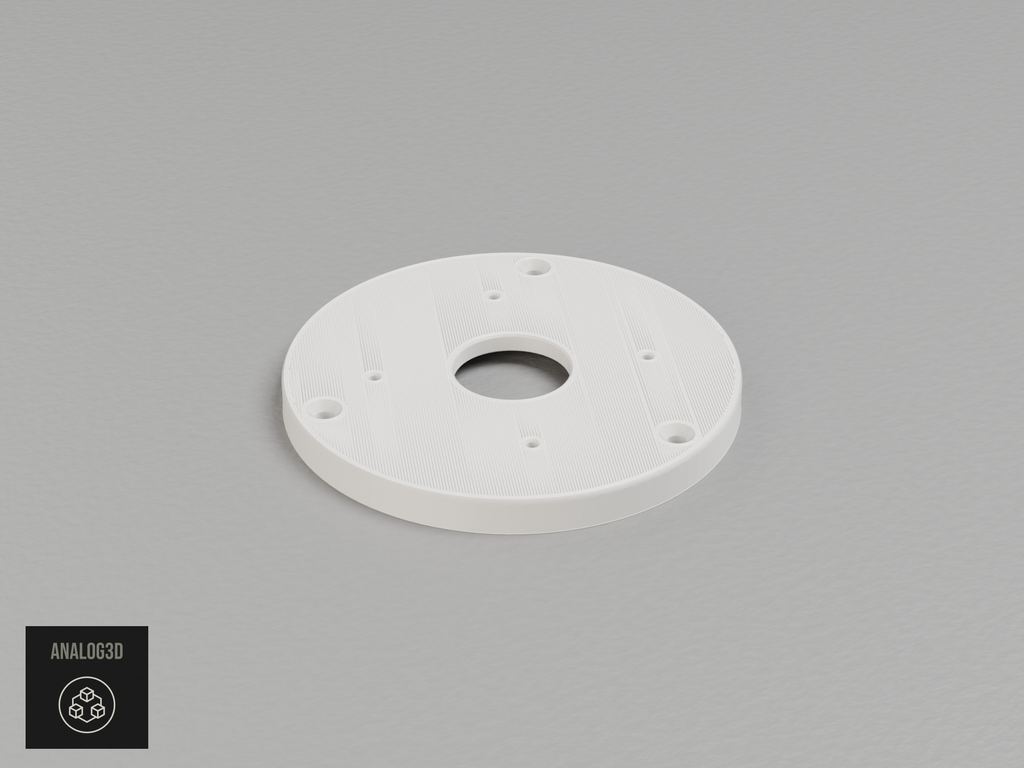

• CB110 - Hikvision round conduit / junction box, Ø115 mm x 40 mm, aluminum alloy, G3/4 conduit entries. Plate: Ø113 mm disc, 3 screw holes on the box's Ø100 mm 3-hole pattern. Hikvision datasheet

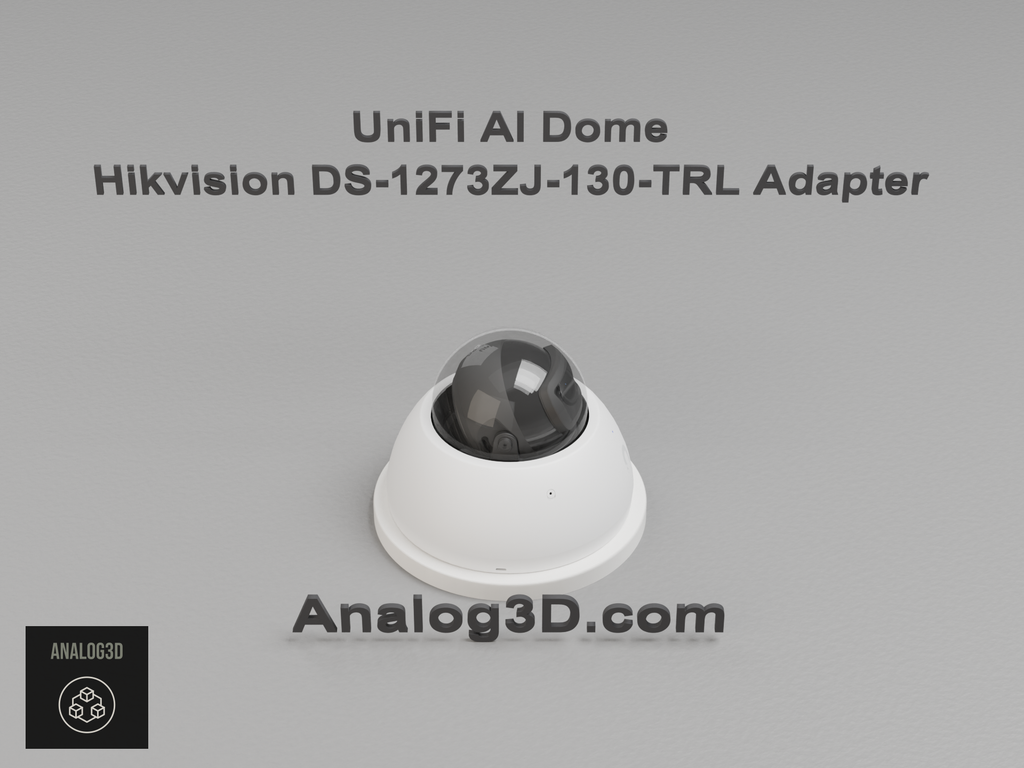

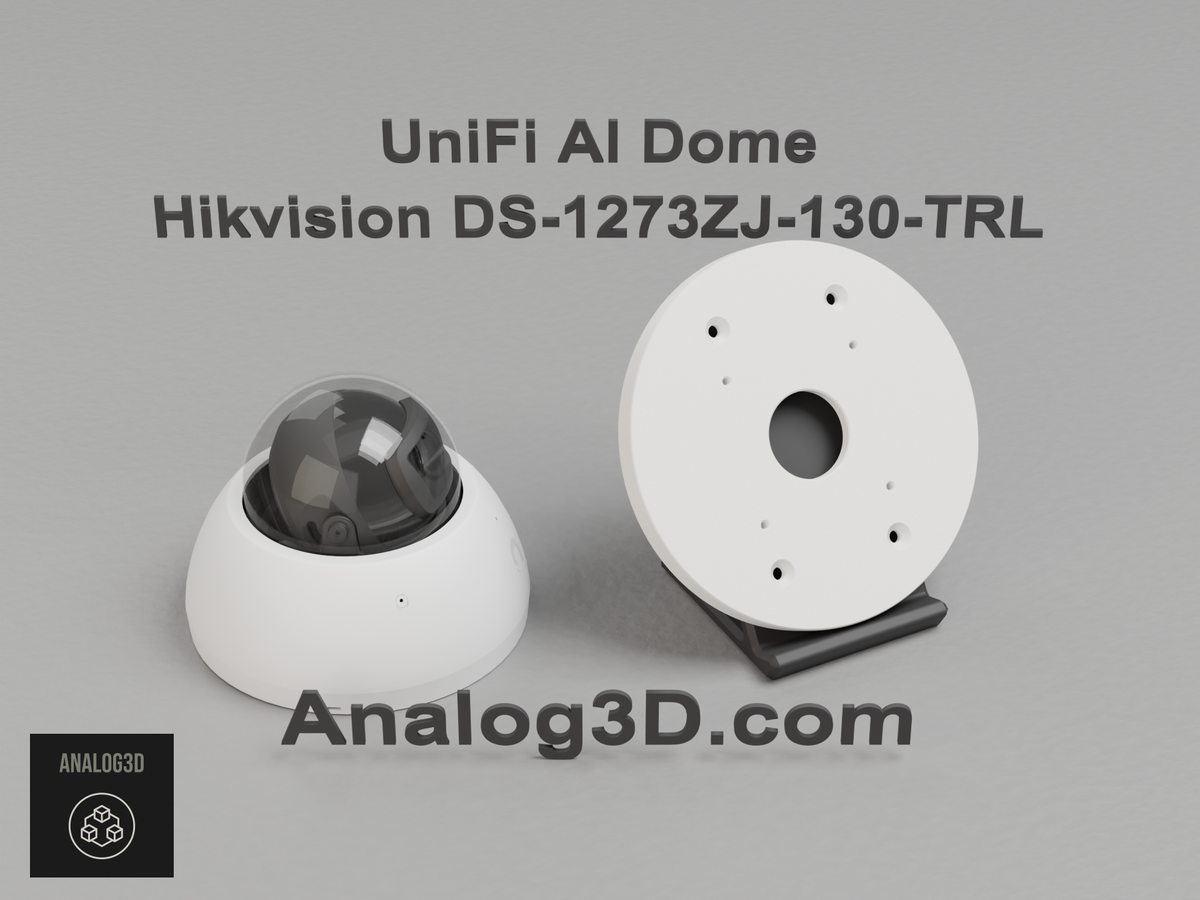

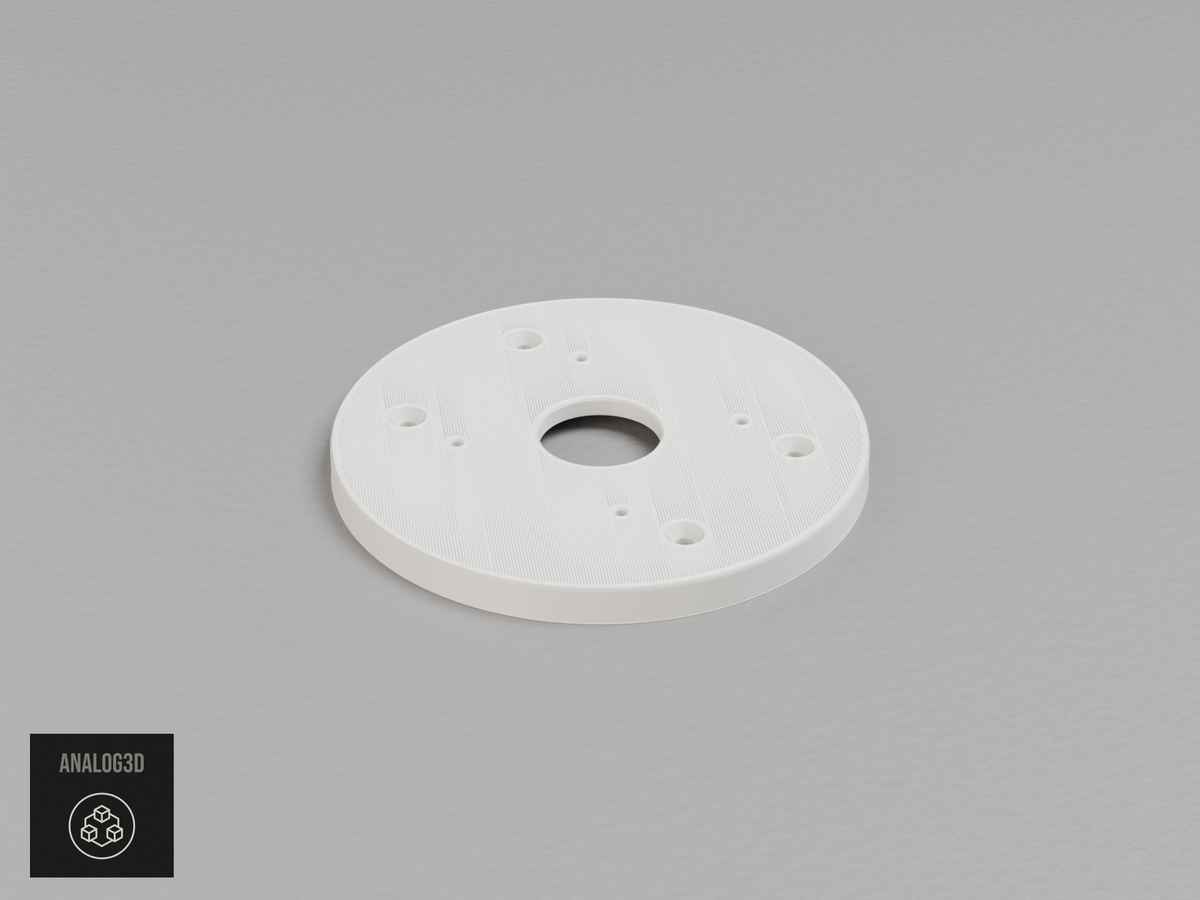

• DS-1273ZJ-130-TRL (also sold as PC130T) - Hikvision turret wall-mount bracket with built-in junction box, Ø132 mm camera plate, aluminum alloy, G1 conduit port. Plate: Ø131 mm disc, 4 countersunk screw holes for the bracket's camera plate. Hikvision datasheet

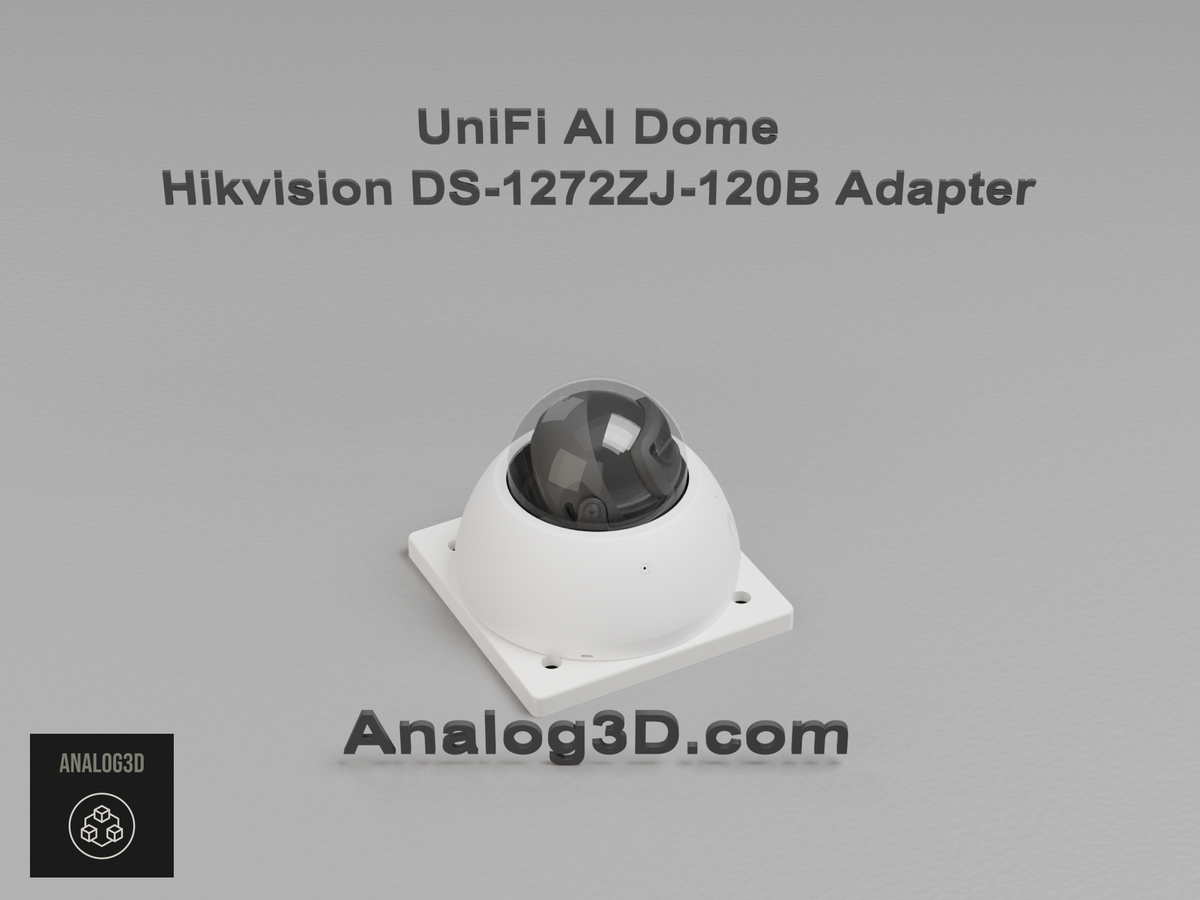

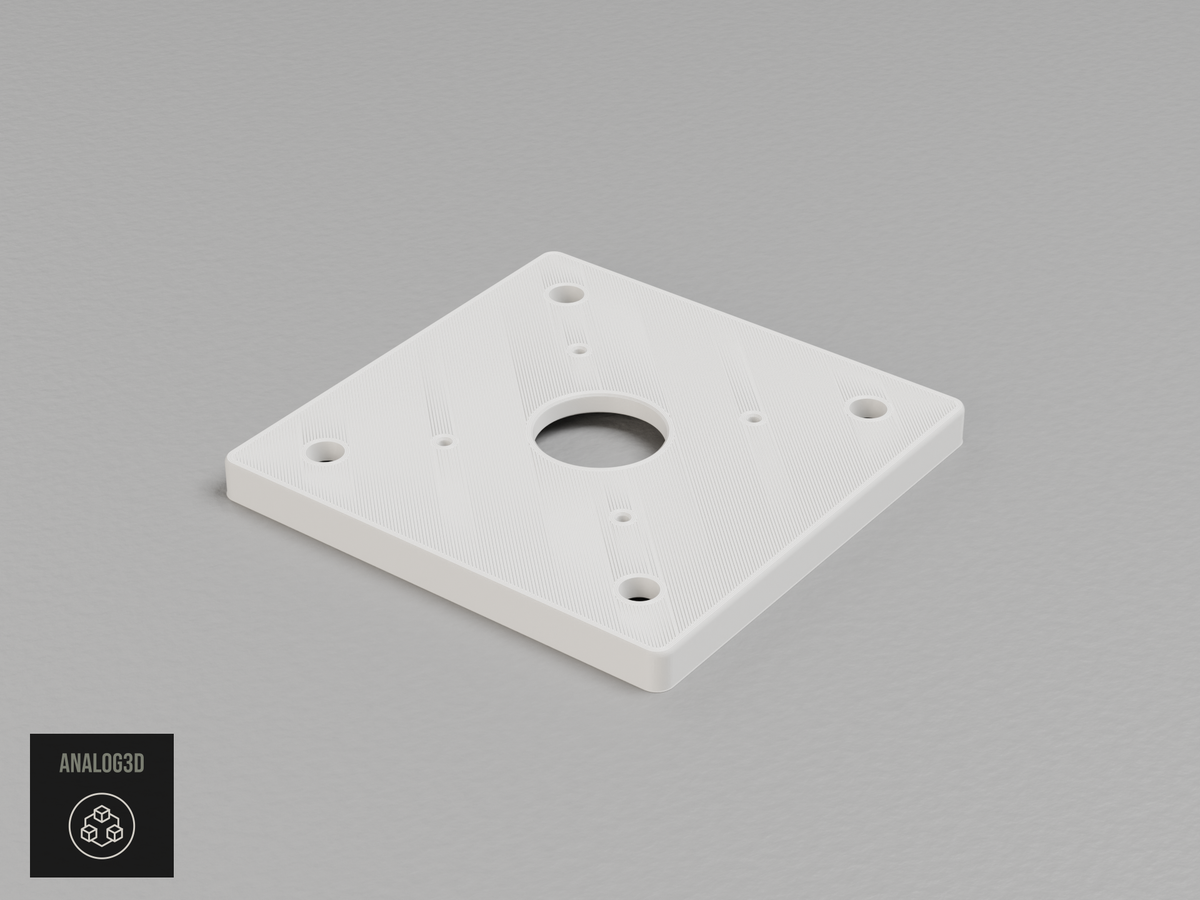

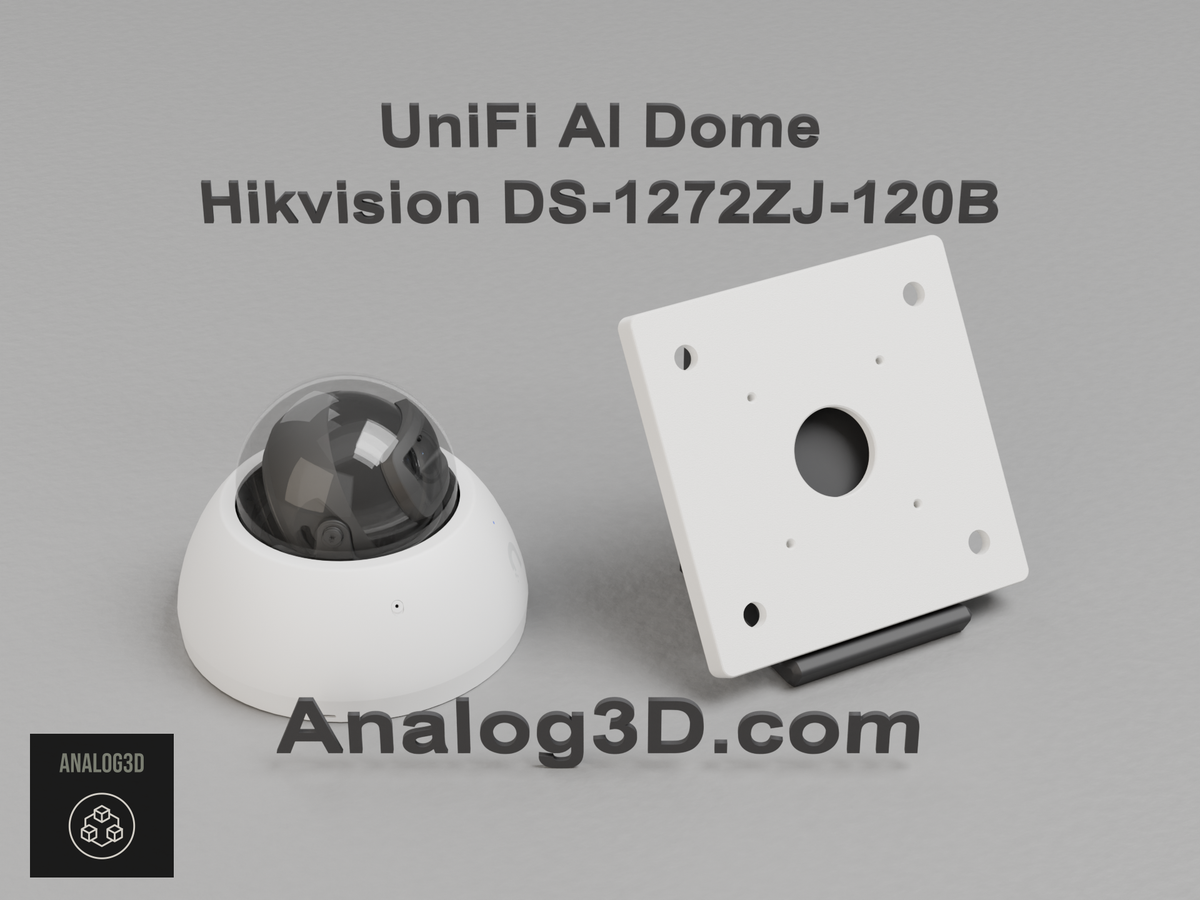

• DS-1272ZJ-120B (also sold as PC120) - Hikvision mini-dome wall-mount bracket with junction box, Ø120 mm camera bowl, aluminum alloy. Plate: 120 x 121 mm rounded square, 4 mounting holes for the bracket's bowl. Hikvision datasheet

Fits the Ubiquiti UVC-AI-Dome. The plate carries the camera's own twist-lock base pattern: fasten it with the screws from the camera box.

10 mm thick plate with a gasket recess on the box side; the camera cable passes through the centre opening into the box.

Materials & Colors:

• White PETG
• Black PETG
• Carbon Fiber PETG

PETG is a tough, impact-resistant plastic with excellent moisture, chemical, and UV resistance for long-lasting real-world use.

Required: uses the hardware included with your camera. Camera, Hikvision box or bracket, and box screws are not included.
